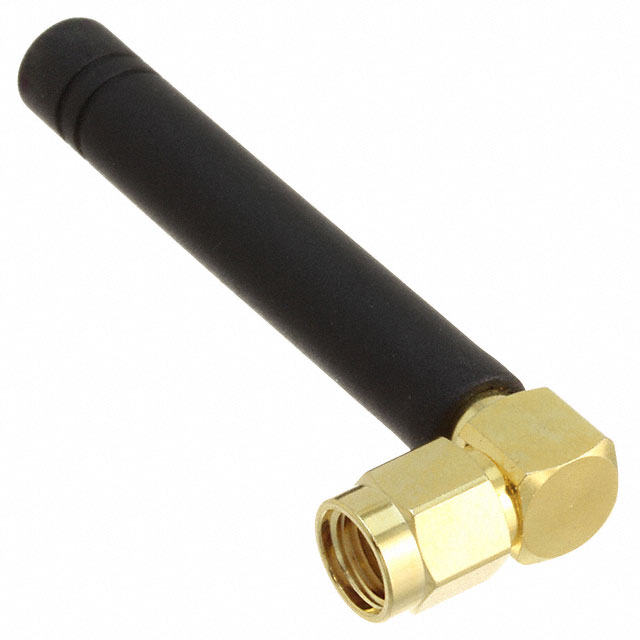

DELTA15/X/SMAM/RA/RP/11

$10.41

Description：RF ANT 2.4GHZ WHIP RA SMA MALE
Series：DELTA 15
Mfr：Siretta Ltd
Package：Bulk

SKU:d8bc0cfd55f5 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ WHIP RA SMA MALE
Series：DELTA 15
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Right Angle
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：2.106" (53.50mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

DELTA15/X/SMAM/RA/RP/11

Overview

The Siretta DELTA15/X/SMAM/RA/RP/11 is an external WiFi antenna from the DELTA 15 series. It features a short, stubby physical form factor designed for direct installation. The antenna operates within the 2.4 GHz frequency range and provides a gain of 2 dBi. It utilizes an SMA RP connector with male polarity. Internally, the antenna structure consists of a quarter-wave dipole. The device is characterized as omnidirectional and is specifically intended for WiFi applications.

Feature Summary

Omnidirectional radiation pattern suitable for general coverage
Compact stubby design for discreet direct mounting
Quarter-wave dipole internal construction

Applications

WiFi network connectivity
Direct installation on devices
Short-range wireless communication systems

Procurement Notes

Verify the specific connector type and polarity requirements against the host device interface before procurement. Confirm that the SMA RP male connector matches the equipment port specifications to ensure proper mating. Ensure the operating frequency aligns with the intended 2.4 GHz application. Check for any environmental constraints regarding the direct installation method.

Selection Notes

Select this model when a low-profile, omnidirectional solution is required for 2.4 GHz WiFi operations. The quarter-wave dipole design offers standard performance for compact deployments. Consider the direct installation capability if space is limited. Verify compatibility with existing SMA RP interfaces to avoid adapter usage.

Part Context

This component belongs to the DELTA 15 series by Siretta Ltd. The series focuses on compact antenna solutions for wireless protocols. The specific part number indicates the inclusion of an SMA RP connector and a stubby form factor. It is categorized as an external passive antenna for WiFi use.
