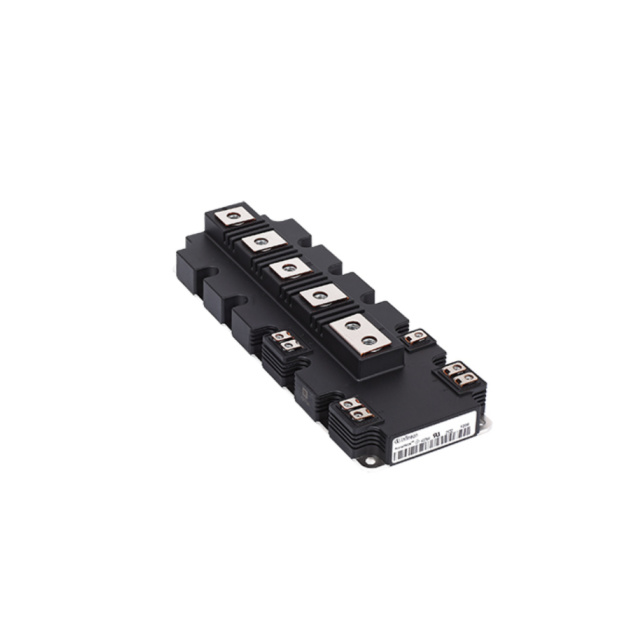

DF1400R12IP4DBOSA1

$462.95

Description：IGBT MOD 1200V 1400A 7700W
Series：PrimePACK™3

SKU:a9e6fd35fb3a Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 1400A 7700W
Series：PrimePACK™3
Mfr：Infineon Technologies
Package：Bulk,Tray
IGBT Type：Trench Field Stop
Configuration：Single Chopper
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 1400A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：1400 A
Power - Max：7700 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：82 nF @ 25 V

Download product information

DF1400R12IP4DBOSA1

Overview

The DF1400R12IP4D is a PrimePACK™3 IGBT module featuring Trench/Fieldstop IGBT4 technology and an enlarged Emitter Controlled 4 diode. It provides a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (IC nom) of 1400 A at TC = 100°C with a maximum junction temperature of 175°C. The repetitive peak collector current (ICRM) reaches 2800 A for 1 ms pulses. At Tvj = 25°C, the typical collector-emitter saturation voltage (VCEsat) is 1.75 V, while the diode forward voltage (VF) is 1.65 V. Total power dissipation is rated at 7.70 kW at TC = 25°C. The module includes an integrated NTC thermistor with a nominal resistance of 5.00 kΩ at 25°C.

Feature Summary

High short circuit capability with self-limiting short circuit current
Extended operation temperature range up to 175°C
High DC stability and robust module construction
Low thermal resistance substrate design

Applications

Chopper applications
Industrial drives
Traction systems

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration details. Ensure that the component meets all relevant safety standards and insulation requirements for the intended application environment before finalizing procurement decisions.

Selection Notes

Select this module for high-power chopper circuits requiring robust short-circuit handling and extended temperature tolerance. Consider the 19.5 K/kW thermal resistance per IGBT when designing heatsinking solutions. Verify gate drive compatibility with the specified internal gate resistor and threshold voltages.

Part Context

This component belongs to the Infineon PrimePACK™3 series, designed for high-power density applications. It utilizes IGBT4 technology combined with an enlarged diode structure to optimize switching performance and conduction losses in demanding industrial and traction environments.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains compatible package dimensions, pinout configurations, and electrical ratings such as VCES and IC nom.
