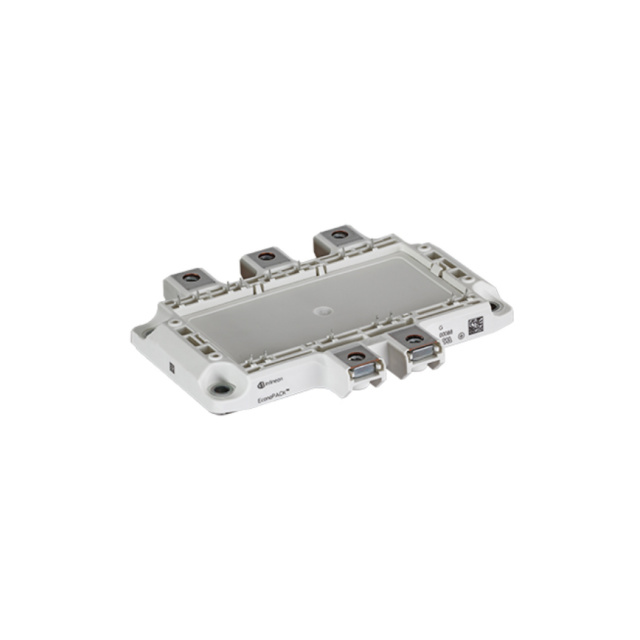

DF200R12PT4B6BOSA1

$174.39

Description：IGBT MOD 1200V 300A 1100W
Series：EconoPACK™ 4

SKU:66a36a56c816 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 300A 1100W
Series：EconoPACK™ 4
Mfr：Infineon Technologies
Package：Bulk,Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 200A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：300 A
Power - Max：1100 W
Current - Collector Cutoff (Max)：15 µA
Input Capacitance (Cies) @ Vce：12.5 nF @ 25 V

Download product information

DF200R12PT4B6BOSA1

Overview

The DF200R12PT4B6BOSA1 is a silicon IGBT module from Infineon Technologies, utilizing Trench Field Stop technology. It features a three-phase inverter configuration with a maximum collector-emitter voltage of 1200 V and a continuous collector current of 300 A at 25°C. The device has a saturation voltage of 1.75 V and a power dissipation rating of 1100 W. It operates within a junction temperature range of -40°C to +150°C. The module employs chassis mounting and includes an integrated NTC thermistor for thermal monitoring.

Feature Summary

Integrates Trench Field Stop IGBT technology for optimized switching performance
Includes an embedded NTC thermistor for precise internal temperature sensing
Designed for robust chassis mounting applications in high-power systems

Applications

Three-phase inverter circuits
Industrial motor drives
Medium-power frequency converters

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to ensure correct technical specifications. Confirm that the component matches the required electrical ratings and package type for your design. Cross-reference the manufacturer part number with authorized distributors to validate authenticity. Ensure compatibility with your thermal management and gate drive requirements before finalizing procurement.

Selection Notes

Select this module for applications requiring a three-phase topology with high current handling capabilities. Consider the 1200 V blocking voltage and 300 A current rating for suitable power levels. Evaluate the need for integrated thermal sensing via the NTC thermistor. Compare power dissipation limits against your cooling system capacity to ensure reliable operation under load conditions.

Part Context

This component belongs to Infineon's Trench Field Stop IGBT module family. It is designed for industrial power electronics applications. The EconoPACK or similar press-fit/chassis mount form factor facilitates efficient heat transfer. It represents a standard solution for medium-power inversion tasks.
