Product Detailed Parameters

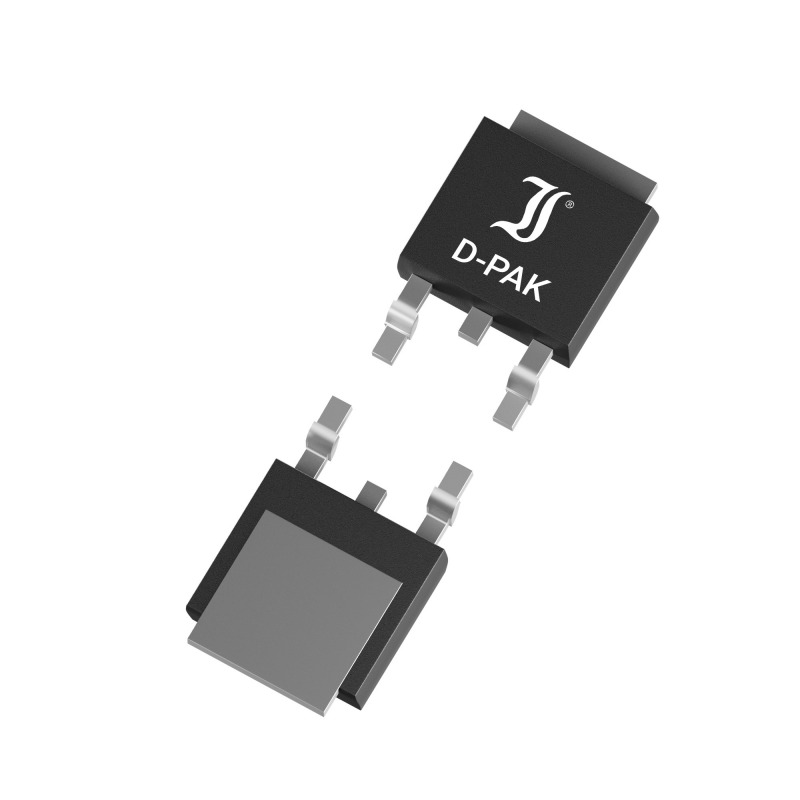

- Description：MOSFET, DPAK, N, 60V, 50A
- Series：-
- Mfr：Diotec Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：65 V
- Current - Continuous Drain (Id) @ 25°C：50A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：11mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id：2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：14 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：825 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：42W (Tc)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount
- Supplier Device Package：TO-252-3, DPak
- Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
Download product information
Overview
The DI050N06D1-Q is an automotive-grade N-channel Power MOSFET manufactured by Diotec Semiconductor. It utilizes advanced trench technology to achieve low on-state resistance and fast switching times. The device features logic-level gate drive capability and is avalanche rated for robust performance. Designed for surface mount applications, it operates within a temperature range of -55°C to +150°C and is qualified under the AEC-Q101 standard for automotive electronics reliability.
Feature Summary
- Automotive grade qualification compliant with AEC-Q101 standards
- Advanced trench technology for low on-state resistance
- Logic level gate drive for efficient control
- Avalanche rated for enhanced circuit protection
Applications
- Automotive power management systems
- DC-DC converter circuits
- Motor control applications
Procurement Notes
Verify the specific suffix 'Q' indicates AEC-Q101 automotive qualification when sourcing. Confirm the package type matches the required TO-252AA (DPAK) footprint. Ensure the supplier provides official datasheets confirming the electrical parameters and temperature ratings. Check for RoHS compliance documentation as required by project specifications.
Selection Notes
Select this component for designs requiring high current handling in automotive environments. The logic-level gate drive simplifies driver circuit design. Consider the thermal dissipation capabilities relative to the PCB layout. Verify that the voltage and current ratings exceed the maximum expected operating conditions for long-term reliability.
Part Context
This part belongs to Diotec's automotive MOSFET portfolio, designed specifically for harsh automotive environments. It complements other components in power conversion and switching applications where reliability and efficiency are critical. The series supports modern electronic devices requiring compact and robust semiconductor solutions.
Replacement Considerations
Check for direct substitutes with identical pinouts and electrical characteristics. Verify that any replacement meets the same AEC-Q101 qualification requirements. Ensure the alternative device offers comparable on-state resistance and switching speeds to maintain system performance.
