DI280N10TL

$3.35

Description：MOSFET TOLL N 100V 0.002OHM 175C
Series：-
Mfr：Diotec Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:962b333c5180 Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET TOLL N 100V 0.002OHM 175C
Series：-
Mfr：Diotec Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：280A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id：4.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：122 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：8150 pF @ 50 V
FET Feature：-
Power Dissipation (Max)：425mW (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TOLL
Package / Case：8-PowerSFN

Download product information

DI280N10TL

Overview

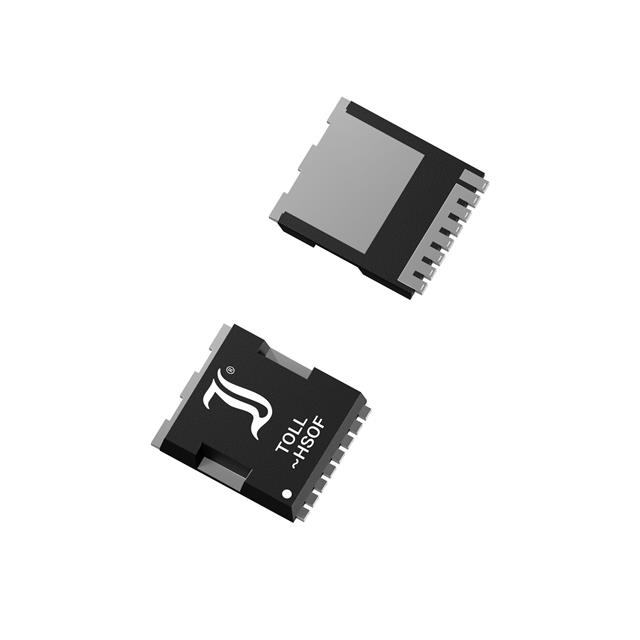

The DI280N10TL is an N-Channel Power MOSFET manufactured by Diotec Semiconductor, housed in a TOLL (~HSOF-8) package. It features a drain-source voltage (VDSS) of 100 V and a continuous drain current (ID) of 280 A at TC = 25°C. The device exhibits a maximum on-state resistance (RDS(on)) of 2 mΩ at VGS = 10 V and ID = 50 A. Key electrical parameters include a gate-source threshold voltage (VGS(th)) ranging from 2.3 V to 4.2 V, a total gate charge (Qg) of 122 nC, and a single-pulse avalanche energy rating (EAS) of 1225 mJ. Thermal performance includes a junction-to-case thermal resistance (RthJC) below 0.35 K/W and a maximum junction temperature (Tj) of 175°C.

Feature Summary

Advanced trench technology for low on-state resistance and fast switching times
Avalanche rated capability with high single-pulse energy absorption
Low gate charge characteristics for efficient drive requirements
Compliant with RoHS, REACH, and conflict minerals regulations

Applications

DC/DC converters
Power supplies
DC drives
Power tools

Procurement Notes

Verify the specific ordering suffix when procuring. The base model DI280N10TL represents the commercial/industrial grade standard version. Suffixes such as -Q indicate AEC-Q101 compliance, while -AQ denotes qualification status. Confirm that the required reliability grade matches the application environment before finalizing orders.

Selection Notes

Select this component for high-current applications requiring low conduction losses within a 100 V system. Ensure the design accommodates the 280 A continuous current limit at case temperatures of 25°C. Evaluate thermal management strategies given the 425 W power dissipation rating and the requirement for adequate copper pad areas to maintain safe operating temperatures under load.

Part Context

This part belongs to Diotec's lineup of N-Channel Power MOSFETs utilizing advanced trench technology. It is designed for robust performance in industrial and commercial environments. The TOLL package provides a compact footprint with enhanced thermal dissipation capabilities compared to traditional surface mount packages, suitable for high-power density designs.
