DI300N10TL-AQ

Description：MOSFET, TOLL, N, 100V, 300A, 175
Series：-
Mfr：Diotec Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bdbcc54625a1 Category: Single FETs, MOSFETs Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET, TOLL, N, 100V, 300A, 175
Series：-
Mfr：Diotec Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：1.5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id：4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：161 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：10622 pF @ 50 V
FET Feature：-
Power Dissipation (Max)：277.7W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：TOLL
Package / Case：8-PowerSFN

Download product information

DI300N10TL-AQ

Overview

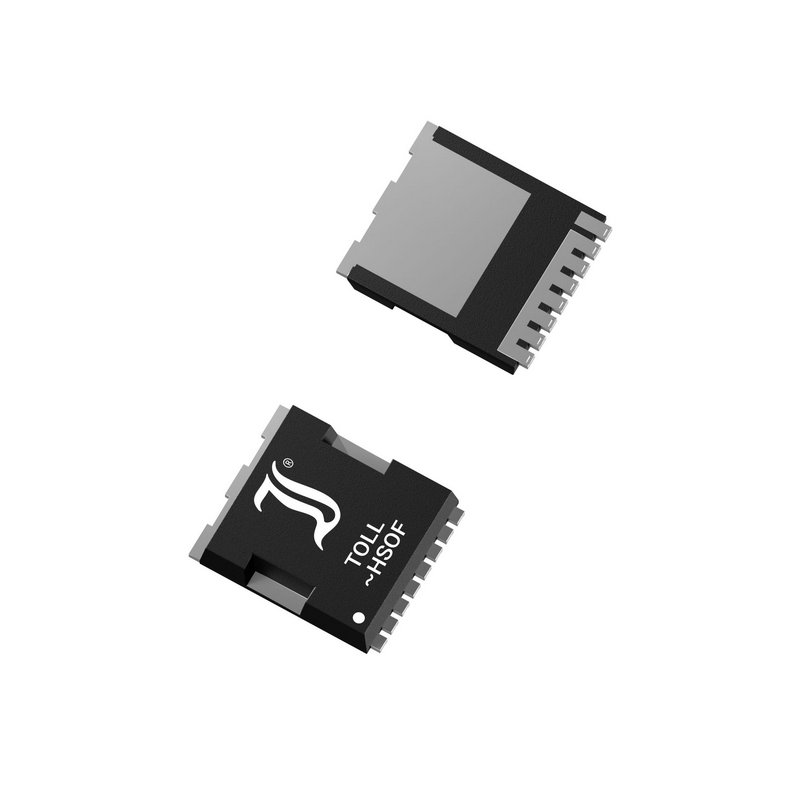

The DI300N10TL-AQ is an N-Channel Power MOSFET manufactured by Diotec Semiconductor, housed in a TOLL (HSOF-8) package. It features a drain-source voltage of 100 V and a continuous drain current of 300 A at 25°C case temperature. The device exhibits a maximum on-state resistance of 1.5 mΩ at VGS = 10 V and ID = 100 A. It supports a power dissipation of 277.7 W at 25°C and operates within a junction temperature range of -55°C to +175°C. The component is fully qualified under the AEC-Q101 standard.

Feature Summary

Advanced Trench Technology for low on-state resistance
Avalanche rated capability
Fast switching times with low gate charge
Fully AEC-Q101 qualified

Applications

DC/DC Converters
Power Supplies
DC Drives
Power Tools

Procurement Notes

Verify the specific suffix against official documentation to confirm qualification status. The -AQ suffix indicates full AEC-Q101 qualification, while other suffixes may denote different compliance levels. Confirm mechanical data such as tape and reel specifications and soldering conditions prior to integration into manufacturing processes.

Selection Notes

Select this component for high-current applications requiring robust thermal performance and avalanche ruggedness. The low on-state resistance minimizes conduction losses, while the fast switching characteristics support efficient operation in high-frequency environments. Ensure adequate heat sinking to maintain junction temperatures within the specified operational limits.

Part Context

This part belongs to Diotec's N-Channel Power MOSFET lineup utilizing advanced trench technology. It is designed for commercial and industrial grade applications, offering high reliability and efficiency. The TOLL package provides superior thermal management compared to traditional surface-mount packages, making it suitable for demanding power electronics designs.
