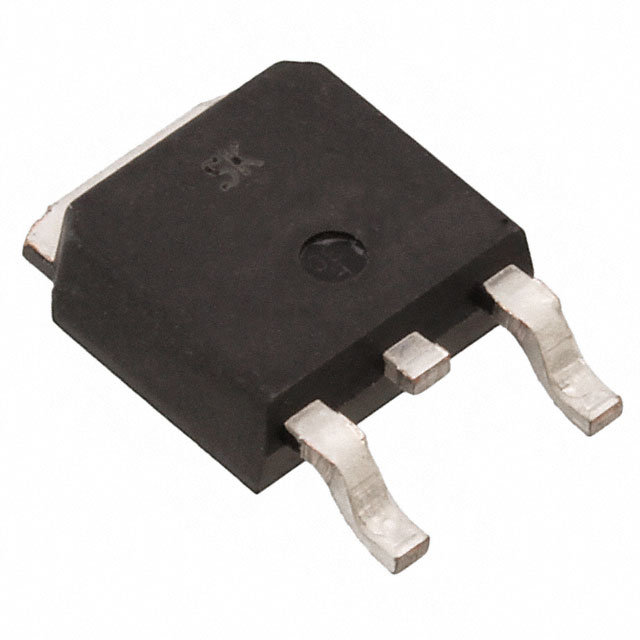

DKI06186

$0.99

Description：MOSFET N-CH 60V 31A TO252
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bcf4f30395bd Category: Single FETs, MOSFETs Brand: Sanken Electric USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKI06186 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Sanken Electric USA Inc.. Its product description is MOSFET N-CH 60V 31A TO252. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for DKI06186

Description：MOSFET N-CH 60V 31A TO252
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：31A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：15mOhm @ 15.5A, 10V
Vgs(th) (Max) @ Id：2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs：23.7 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1510 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：37W (Tc)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TO-252
Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63

Single FETs, MOSFETs datasheet and documents for DKI06186

DKI06186

Single FETs, MOSFETs Overview

The DKI06186 is a 60 V N-channel Trench Power MOSFET manufactured by Sanken Electric USA Inc. It features a maximum continuous drain current of 31 A and a low on-resistance of 16.3 mΩ at VGS = 10 V. The device supports 4.5 V gate drive with a total gate charge of 9.1 nC, enabling high-speed switching. It is housed in a TO-252 package and includes 100% Unclamped Inductance (UIL) testing for reliability.

Single FETs, MOSFETs Feature Summary

Low on-resistance and total gate charge for efficient power conversion
Capable of operation with 4.5 V gate drive voltage
High-speed switching characteristics
100% UIL tested for enhanced reliability

Single FETs, MOSFETs Applications

DC-DC converters
Synchronous rectification
Power supplies

Single FETs, MOSFETs Procurement Notes

Verify the component datasheet revision to ensure alignment with specific design requirements. Confirm that the TO-252 package dimensions match the target PCB footprint. Check for RoHS compliance status if environmental regulations apply to the final assembly. Ensure proper handling procedures are followed during storage and installation.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring low conduction losses and fast switching speeds within a 60 V system. Evaluate thermal management capabilities based on the specified junction-to-case thermal resistance. Consider the 4.5 V gate drive compatibility when designing the driver circuitry. Verify that the continuous and pulsed current ratings meet the peak load demands of the application.

Single FETs, MOSFETs Part Context

This part belongs to the Sanken Electric USA Inc. lineup of power MOSFETs designed for general-purpose electronic equipment. It utilizes trench technology to achieve low on-resistance and fast switching performance. The product is intended for use in components for home appliances, office equipment, and telecommunication apparatus.

Single FETs, MOSFETs Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Sanken Electric directly for potential equivalent devices or updated product recommendations.
