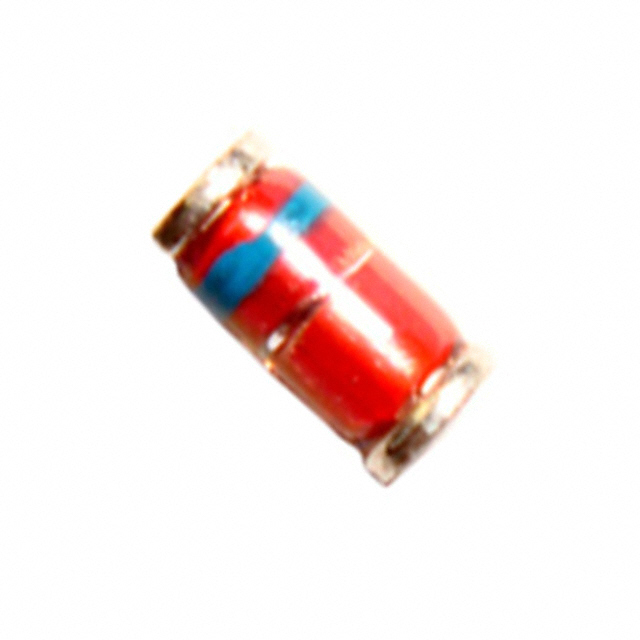

DL4004-TP

$0.28

Description：DIODE STANDARD 400V 1A MELF
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:434244f93f88 Category: Single Diodes Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DL4004-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE STANDARD 400V 1A MELF. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for DL4004-TP

Description：DIODE STANDARD 400V 1A MELF
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：400 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 1 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：5 µA @ 400 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：DO-213AB, MELF
Supplier Device Package：MELF
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for DL4004-TP

DL4004-TP

Single Diodes Overview

The DL4004-TP is a 1 Amp glass passivated rectifier in a MELF package. It features a maximum recurrent peak reverse voltage of 400V and an average forward current rating of 1.0A at 75°C. The device exhibits a maximum instantaneous forward voltage of 1.1V at 1.0A and a typical junction capacitance of 12pF. Operating temperatures range from -65°C to +150°C, with a thermal resistance of 30°C/W.

Single Diodes Feature Summary

Glass passivated junction for low leakage current
MELF surface mount package design
High temperature operation capability

Single Diodes Applications

Surface mount rectification circuits
General purpose power supply applications
Industrial control systems

Single Diodes Procurement Notes

Verify the specific datasheet revision and electrical parameters against the manufacturer's official documentation before integration. Confirm that the MELF package dimensions align with the target PCB footprint. Ensure compliance with RoHS requirements if applicable by checking the part suffix designation. Validate thermal management strategies based on the specified junction-to-lead thermal resistance.

Single Diodes Selection Notes

Select this component for applications requiring a compact surface mount rectifier with high voltage blocking capabilities. The MELF form factor offers advantages in automated assembly and space-constrained designs. Consider the 400V reverse voltage rating and 1A current capacity when designing power stages. Evaluate the operating temperature range to ensure reliability under expected thermal conditions.

Single Diodes Part Context

This part belongs to the DL4001 through DL4007 series of 1 Amp glass passivated rectifiers. The series covers reverse voltage ratings from 50V to 1000V, allowing designers to select appropriate voltage grades for various circuit requirements while maintaining consistent package and performance characteristics across the family.

Single Diodes Replacement Considerations

The datasheet explicitly states that the DL400x series is not recommended for new designs. Engineers should consider transitioning to the GS1A-LTP through GS1M-LTP series as the suggested replacement options for future projects.
