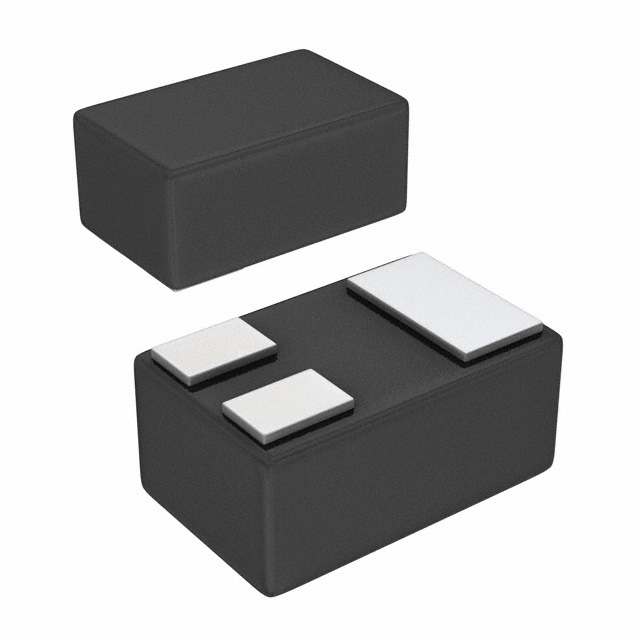

DMP2088LCP3-7

$0.43

Description：MOSFET P-CH 20V 2.9A X2DSN1006-3
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:600e4913ba1a Category: Single FETs, MOSFETs Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 20V 2.9A X2DSN1006-3
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：20 V
Current - Continuous Drain (Id) @ 25°C：2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.8V, 8V
Rds On (Max) @ Id, Vgs：88mOhm @ 500mA, 8V
Vgs(th) (Max) @ Id：1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：1.5 nC @ 4.5 V
Vgs (Max)：-12V
Input Capacitance (Ciss) (Max) @ Vds：160 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：1.13W
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：X2-DSN1006-3
Package / Case：3-XFDFN

Download product information

DMP2088LCP3-7

Overview

The DMP2088LCP3-7 is a discontinued single P-channel enhancement mode MOSFET manufactured by Diodes Incorporated. It features a drain-source voltage (BVDSS) of -20V and a maximum continuous drain current (ID) of -2.9A at +25°C. The device offers a low on-resistance (RDS(ON)) of 88mΩ at VGS = -8V and 105mΩ at VGS = -4.5V. Packaged in an X2-DSN1006-3 footprint with a height of 0.30mm, it operates within a junction temperature range of -55°C to +150°C.

Feature Summary

Designed for minimal footprint requirements in handheld and mobile applications
Low gate charge (Qg) and gate-drain charge (Qgd) characteristics
Totally lead-free and fully RoHS compliant construction
Halogen and antimony free "Green" device

Applications

Battery management systems
Load switches
Battery protection circuits
Handheld electronic devices
Mobile applications

Procurement Notes

This component is officially marked as obsolete and discontinued by the manufacturer. Verify availability through authorized distributors or secondary markets only. Confirm that any available units are genuine and match the original specifications. Do not rely on standard supply channels for new production orders.

Selection Notes

Select this part only if the specific X2-DSN1006-3 package and -20V rating align with the design constraints. Evaluate thermal performance carefully due to the small form factor. Ensure the application does not require active manufacturing support from the supplier.

Part Context

The DMP2088LCP3 belongs to Diodes Incorporated's portfolio of surface-mount power MOSFETs designed for space-constrained electronics. It utilizes silicon technology and is housed in a compact X2-DSN1006-3 package. This series targets portable consumer electronics requiring efficient power switching with minimal board area consumption.
