Product Detailed Parameters
- Description：MOSFET N-CH 60V 9.4A 6UDFN
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：9.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：18mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id：3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：15.3 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：925 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：1.06W (Ta)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount

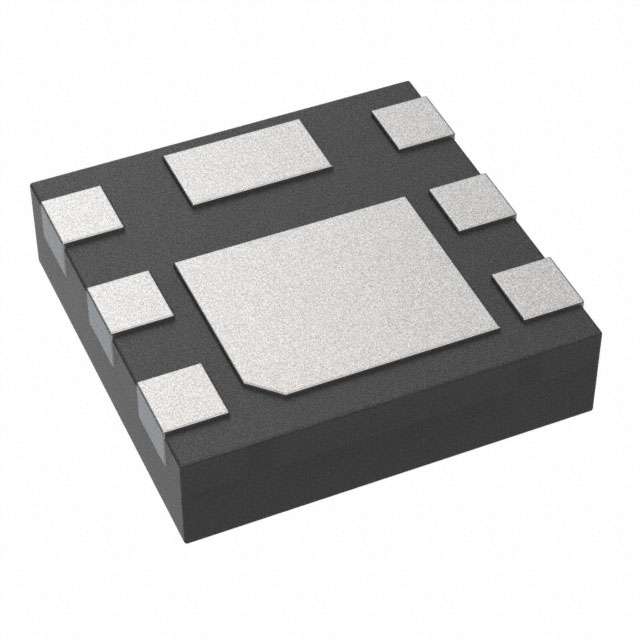

- Supplier Device Package：U-DFN2020-6 (SWP) (Type F)
- Package / Case：6-UDFN Exposed Pad
Download product information
Overview
The DMTH6016LFDFWQ-7 is a single N-channel enhancement mode MOSFET manufactured by Diodes Incorporated. It features a 60V drain-source breakdown voltage and a continuous drain current of 41A at 25°C case temperature. The device exhibits a maximum on-resistance of 16mΩ at VGS=10V. It operates within a junction temperature range of -55°C to +175°C and is qualified under AEC-Q101 standards for automotive applications.
Feature Summary
- Automotive-grade reliability with AEC-Q101 qualification
- High thermal performance supporting operation up to +175°C
- Low on-resistance for efficient power management
- Compact PowerDI3333-8 surface-mount package
Applications
- DC-DC converters
- LED backlighting circuits
- Advanced Driver Assistance Systems (ADAS)
- Under-the-hood automotive electronics
Procurement Notes
Verify the specific suffix 'Q' indicates AEC-Q101 automotive qualification status as per manufacturer documentation. Confirm the PowerDI3333-8 package dimensions match PCB layout requirements. Ensure sourcing channels provide original manufacturer packaging to guarantee component authenticity and traceability.
Selection Notes
Select this component for high-density automotive designs requiring robust switching performance in limited space. The low gate charge supports fast switching speeds, reducing dynamic losses. Verify that the 60V rating provides sufficient margin for the target application's supply voltage and transient conditions.
Part Context
This part belongs to the DMTH6016 series of ultra-small automotive MOSFETs from Diodes Incorporated. These devices are engineered to replace larger packages like SOT223, offering significantly higher power density. The series targets demanding environments where size constraints and thermal resilience are critical design factors.
Replacement Considerations
Check pinout compatibility and thermal resistance values when substituting. Verify that alternative components meet the same AEC-Q101 automotive qualification standards and support the required +175°C operating temperature range.
