DMTH61M5SPSWQ-13

$0.79

Description：MOSFET BVDSS: 41V~60V POWERDI506
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR)

SKU:fc160fe7227f Category: Single FETs, MOSFETs Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET BVDSS: 41V~60V POWERDI506
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：225A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：1.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：130.6 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：8306 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：3.2W (Ta), 167W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：PowerDI5060-8 (SWP)
Package / Case：8-PowerTDFN

Download product information

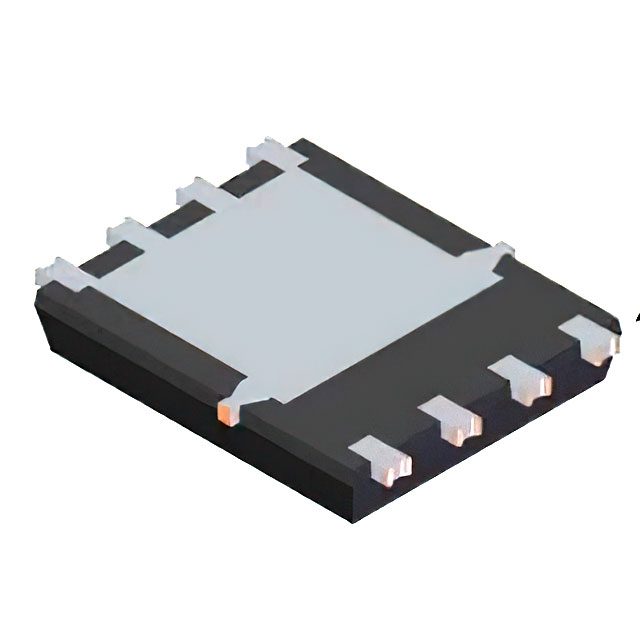

DMTH61M5SPSWQ-13

Overview

The DMTH61M5SPSWQ is a 60V N-channel enhancement mode MOSFET in a PowerDI5060-8 package. It features a maximum drain-source voltage of 60V and a continuous drain current of 225A at TC = +25°C. The device has a maximum on-resistance of 1.5mΩ at VGS = 10V. It supports an operating temperature range from -55°C to +175°C and is qualified to AEC-Q101 standards.

Feature Summary

Rated for operation up to +175°C junction temperature, suitable for high ambient environments
100% unclamped inductive switching (UIS) tested in production for robustness
Wettable flank design enables improved optical inspection
Manufactured in IATF 16949 certified facilities with PPAP capability

Applications

Engine Management Systems
Body Control Electronics
DC-DC Converters

Procurement Notes

Verify the specific ordering suffix matches the required packaging configuration. Confirm that the component meets all automotive quality requirements, including AEC-Q101 qualification and PPAP documentation. Ensure the manufacturer's marking code aligns with the expected product type and date code format before finalizing procurement orders.

Selection Notes

Select this component when a low on-resistance value is critical for minimizing conduction losses in high-current applications. Consider the thermal resistance characteristics and the ability to handle high pulsed currents if the application involves significant inductive loads or transient conditions requiring robust avalanche energy handling capabilities.

Part Context

This part belongs to Diodes Incorporated's automotive-grade MOSFET portfolio designed for stringent reliability standards. It utilizes the PowerDI5060-8 surface-mount package to provide efficient heat dissipation and compact footprint solutions for modern electronic control units and power distribution systems within vehicles.

Replacement Considerations

Consult official substitution lists for verified alternatives. Cross-reference pin configurations and electrical parameters carefully to ensure compatibility with existing circuit designs without modifying board layouts or driver circuits.
