DTC114YCA

$0.10

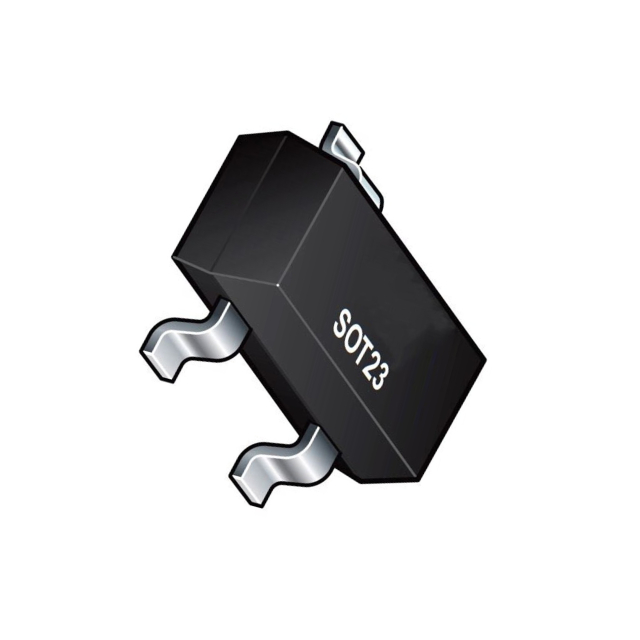

Description：NPN 50V 100MA 200MW SOT-23
Series：-

SKU:5310c75a5fdd Category: Single, Pre-Biased Bipolar Transistors Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NPN 50V 100MA 200MW SOT-23
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Resistors Included：-
Transistor Type：-
Current - Collector (Ic) (Max)：-
Voltage - Collector Emitter Breakdown (Max)：-
Resistor - Base (R1)：-
Resistor - Emitter Base (R2)：-
DC Current Gain (hFE) (Min) @ Ic, Vce：-
Vce Saturation (Max) @ Ib, Ic：-
Current - Collector Cutoff (Max)：-
Frequency - Transition：-
Power - Max：-
Grade：-
Qualification：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-

Download product information

DTC114YCA

Overview

The DTC114YCA is an NPN digital transistor manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It integrates bias resistors to simplify circuit design, eliminating the need for external input resistors in inverter configurations. The device operates with a supply voltage range of 1V to 50V and supports a maximum collector current of 0.1A. Key electrical parameters include an input resistance (R1) of 1kΩ to 10kΩ and an emitter-base resistance (R2) of 1kΩ to 47kΩ. It features a power dissipation capacity of 0.2W and functions within a storage temperature range of -55°C to 150°C. The component is housed in a surface-mount SST3 (SOT-23) package.

Feature Summary

Integrates built-in biasing resistors to enable inverter circuit configuration without external input components
Supports simplified circuit design by requiring only on/off condition settings for operation
Provides complementary PNP type availability for paired applications

Applications

Inverter circuits
Interface logic circuits
Driver applications

Procurement Notes

Verify the manufacturer designation as Shenzhen Slkormicro Semicon Co., Ltd. against official datasheets. Confirm the specific resistor values for R1 and R2 variants, as specifications may vary between 1kΩ/10kΩ and 1kΩ/47kΩ configurations. Ensure the SST3/SOT-23 package code matches the required footprint. Check RoHS compliance status and confirm the product is suitable for non-automotive standard-grade applications.

Selection Notes

Select this component for general-purpose switching and inversion tasks where space efficiency is critical. The integrated resistors reduce board space and assembly steps compared to discrete BJT solutions. Verify that the 50V collector-emitter voltage rating meets the system's maximum operating voltage. Consider the complementary DTA114ECA if a PNP counterpart is required for push-pull or differential stages.

Part Context

The DTC114YCA belongs to the family of digital transistors with built-in resistors, designed to replace multiple discrete components. It simplifies the design of switching circuits by combining an NPN transistor with internal biasing networks. This integration reduces component count and improves reliability in consumer electronics and industrial control systems where standard-grade performance is sufficient.
