DTC143XCA

Overview

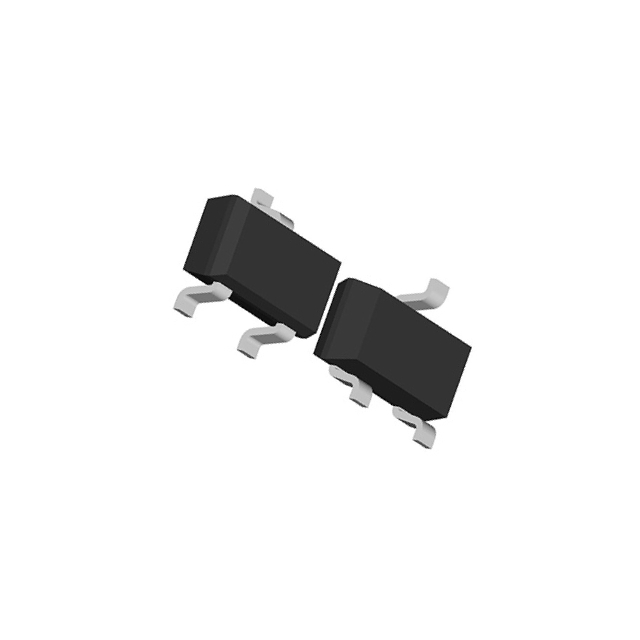

The DTC143XCA is an NPN digital transistor manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It integrates bias resistors to facilitate inverter circuit configuration without external input components. The device features a supply voltage of 50V and a collector current of 0.1A. Key electrical parameters include an input resistance (R1) of 4.7 kΩ, an emitter-base resistance (R2) of 4.7 kΩ, and a collector-emitter voltage (VCEO) of 50V. It operates within a storage temperature range of -55°C to 150°C and utilizes a surface-mount package.

Feature Summary

• Built-in bias resistors enable inverter circuit configuration without external input resistors
• Thin-film resistors provide complete isolation to allow positive input biasing
• Design eliminates parasitic effects for simplified device operation

Applications

• Inverter circuits
• Interface applications
• Driver circuits

Procurement Notes

Verify the manufacturer designation carefully, as the DTC143XCA part number is widely produced by multiple semiconductor vendors including Micro Commercial Components and Rectron Semiconductor. Confirm that the specific batch from Shenzhen Slkormicro Semicon Co., Ltd. matches the required pinout and electrical tolerances for your design. Ensure compliance with RoHS standards and check for any specific automotive or industrial qualification requirements before finalizing procurement.

Selection Notes

Select this component when a compact NPN switching solution with integrated base biasing is required. It is suitable for designs aiming to reduce component count and simplify PCB layout by eliminating external pull-up or pull-down resistors. Consider its 50V rating and 100mA current capacity for low-power signal inversion tasks where space constraints are critical.

Part Context

This component belongs to the family of digital transistors with built-in resistors, designed to replace discrete resistor-transistor combinations. Such devices streamline the design of logic interfaces and switching stages. The integration of thin-film resistors ensures consistent performance and reduces the physical footprint compared to traditional discrete implementations in similar applications.

Replacement Considerations

Compatible substitutes include DTC143XE and DTD143TN3. Verify pin compatibility and electrical specifications against the original design requirements before substitution.
