DXTN5820DFDB-7

Single Bipolar Transistors Overview

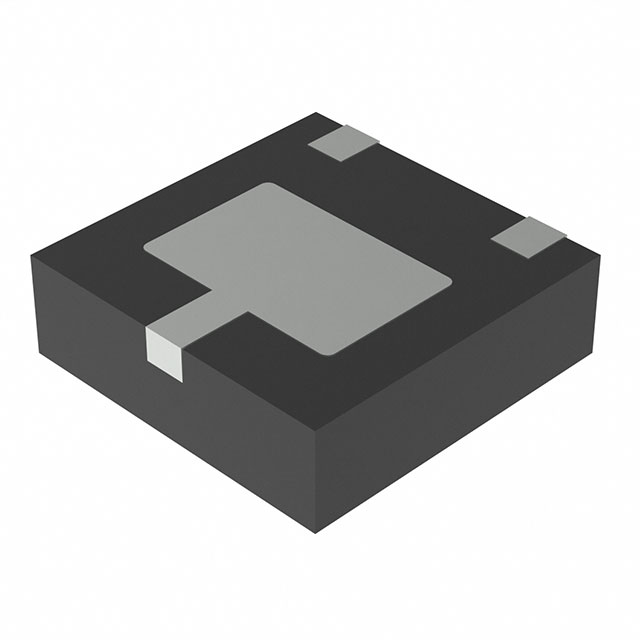

The DXTN5820DFDB-7 is a single NPN low saturation transistor manufactured by Diodes Incorporated. It operates with a collector-emitter voltage of 20V and supports a continuous collector current of 6A. The device features a maximum power dissipation of 1.25W and an operating temperature range from -55°C to +150°C. Packaged in a U-DFN2020-3 (Type B) surface-mount case with a nominal height of 0.6mm, it utilizes NiPdAu terminal finishes.

Single Bipolar Transistors Feature Summary

• Engineered for high current gain hold-up capabilities specified up to 6A
• Features a low profile 0.6mm package designed for thin applications
• Constructed as a totally lead-free and fully RoHS compliant green device

Single Bipolar Transistors Applications

• DC-DC Converters
• Charging Circuits
• Motor Control
• Power Switches

Single Bipolar Transistors Procurement Notes

Verify the specific ordering suffix '-7' corresponds to the required reel size and tape width specifications before procurement. Confirm that the standard commercial grade part meets project requirements, noting that automotive applications requiring AEC-Q qualification or PPAP capability necessitate selecting the related Q-suffix variant instead.

Single Bipolar Transistors Selection Notes

Select this component when designing circuits requiring a compact NPN switch capable of handling up to 6A continuous current within a constrained vertical space. Ensure the PCB layout provides adequate copper area on the exposed collector pad to manage thermal resistance effectively under steady-state operating conditions.

Single Bipolar Transistors Part Context

This component belongs to the DXTN series of low saturation transistors produced by Diodes Incorporated. It is designed for general-purpose switching applications where minimal voltage drop and high efficiency are critical. The device is qualified to JEDEC standards for high reliability.

Single Bipolar Transistors Replacement Considerations

For automotive applications requiring specific change control, refer to the related automotive grade parts with the Q-suffix. Verify compatibility with existing PCB footprints if substituting other U-DFN2020-3 devices.
