EC2600ETTS-14.7456M TR

Oscillators Overview

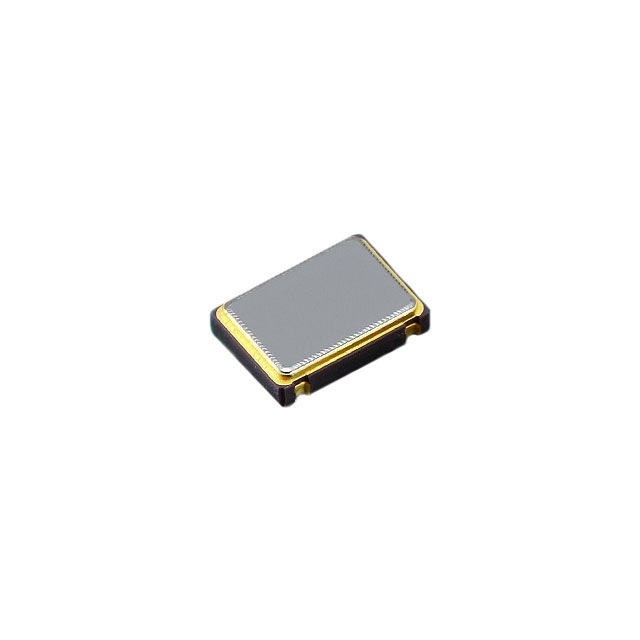

The Ecliptek EC2600ETTS-14.7456M TR is a standard clock oscillator operating at a nominal frequency of 14.7456 MHz with LVCMOS output logic levels. It functions within a supply voltage range centered on 3.3V and supports an enable/disable control feature via a tri-state pin. The device is designed for industrial applications, offering a total frequency tolerance and stability of ±100 ppm across the full operating temperature range of -40°C to +85°C. This specification encompasses calibration tolerance, temperature stability, aging, and other environmental factors. The component is housed in a compact 4-SMD, no-lead package suitable for surface mount assembly.

Oscillators Feature Summary

• Provides stable LVCMOS clock signals with integrated enable/disable functionality
• Maintains high frequency accuracy across wide industrial temperature variations
• Complies with RoHS directives and lead-free manufacturing standards

Oscillators Applications

• Industrial communication gateways requiring precise timing references
• Embedded systems utilizing serial data buses such as Ethernet or USB
• Consumer electronics demanding low-power clock sources
• Test and measurement equipment needing stable reference frequencies

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency and package type before ordering. Confirm compliance with regional environmental regulations if exporting. Ensure the supplier provides valid documentation regarding RoHS and REACH status. Check for any specific handling requirements related to electrostatic discharge during storage and assembly processes.

Oscillators Selection Notes

Select this component when a 14.7456 MHz reference is needed for digital interfaces. Consider the ±100 ppm total stability requirement against system timing budgets. Evaluate the 3.3V supply constraint against available power rails. Assess the physical footprint compatibility with existing PCB layouts. Verify that the LVCMOS output voltage levels align with the input thresholds of the receiving logic family.

Oscillators Part Context

This oscillator belongs to the EC2600 series of surface-mount crystal oscillators from Ecliptek. The series is characterized by its small form factor and robust performance in industrial environments. Variants within the series differ primarily in nominal frequency and specific stability grades, while maintaining consistent electrical interface characteristics and mechanical dimensions.

Oscillators Replacement Considerations

Direct substitutes include the EC2600ETTTS-14.7456M TR variant, which may offer enhanced stability specifications. Other compatible options from different manufacturers must match the 14.7456 MHz frequency, LVCMOS output, 3.3V supply, and 4-SMD package. Always verify pinout configurations and electrical parameters before swapping components.
