ECHO17/0.1M/IPEX/S/S/15

$10.80

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 17
Mfr：Siretta Ltd
Package：Bulk

SKU:5c6f603466fd Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO17/0.1M/IPEX/S/S/15 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 2.4GHZ PCB TRACE IPEX SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO17/0.1M/IPEX/S/S/15

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 17
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2.6dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for ECHO17/0.1M/IPEX/S/S/15

ECHO17/0.1M/IPEX/S/S/15

Antennas RF Overview

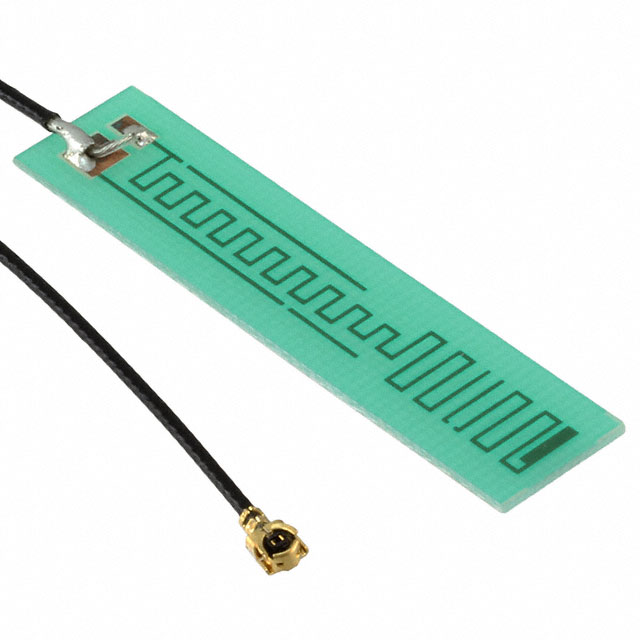

The Siretta ECHO17/0.1M/IPEX/S/S/15 is a 2.4GHz embedded PCB antenna designed for WiFi, Bluetooth, Zigbee, and ISM applications. It features a vertical polarization with a gain of 2.6dBi and an input impedance of 50 ohms. The unit includes a 100mm coaxial cable terminating in an IPEX connector. Its miniature physical dimensions are 45mm in length and 10mm in width, facilitating easy installation within portable devices.

Antennas RF Feature Summary

Compact miniature design suitable for integration into portable electronic devices
Integrated 100mm coaxial cable with IPEX connector for flexible routing
Optimized performance across multiple wireless protocols including WiFi and Bluetooth

Antennas RF Applications

WiFi and WLAN connectivity modules
Bluetooth device implementations
Zigbee sensor networks
ISM band industrial applications

Antennas RF Procurement Notes

Verify the specific connector type compatibility between the IPEX interface and the host system's RF port before procurement. Confirm that the 100mm cable length aligns with the mechanical layout requirements of the target enclosure. Ensure the operating frequency range matches the intended application protocol to guarantee optimal signal integrity and performance standards.

Antennas RF Selection Notes

Select this component when space constraints require a low-profile embedded solution for 2.4GHz operations. The integrated cable simplifies assembly by eliminating separate feedline requirements. Consider the 2.6dBi gain level relative to other series options if higher directivity or extended range is necessary for the specific deployment environment.

Antennas RF Part Context

This model belongs to the Siretta ECHO series of embedded antennas, which provides compact solutions for various wireless communication standards. The ECHO17 variant specifically targets the 2.4GHz ISM band, distinguishing it from cellular or GPS models within the broader product portfolio through its dedicated frequency optimization and physical form factor.
