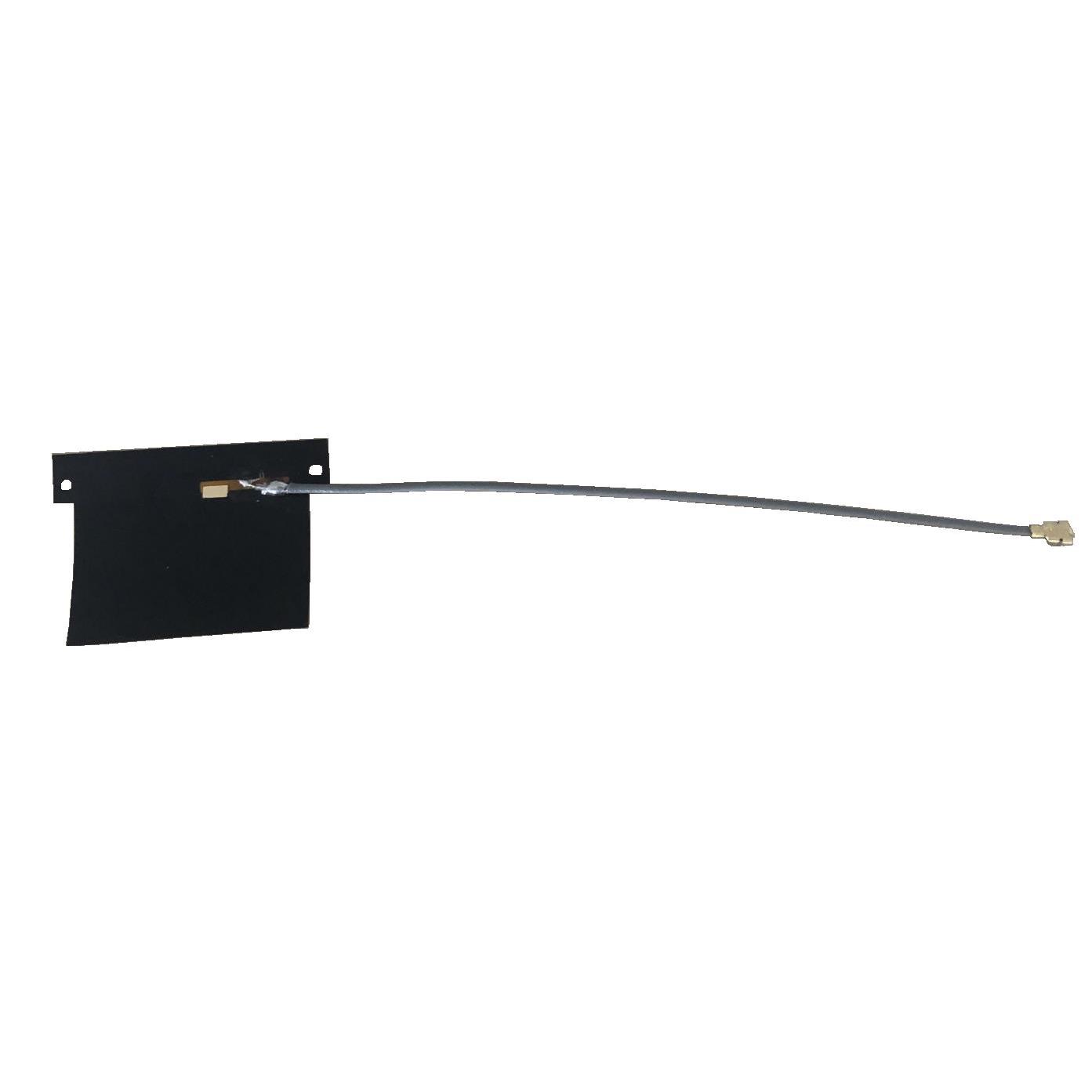

ECHO28B/0.5M/IPEX/S/S/30

$4.14

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 28b
Mfr：Siretta Ltd
Package：Bulk

SKU:40a68b286ff4 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 28b
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.45GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz
Antenna Type：Flat Panel
Number of Bands：2
VSWR：1.5
Return Loss：-
Gain：3dBi
Features：Cable - 500mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：-

Download product information

ECHO28B/0.5M/IPEX/S/S/30

Overview

The Siretta ECHO28B/0.5M/IPEX/S/S/30 is a flexible dual-band WiFi antenna designed for wireless communication applications. It operates across the 2.4 GHz and 5.8 GHz frequency bands, supporting standard WiFi protocols. The unit features a Flexible Printed Circuit Board (FPC) construction with an integrated IPEX connector interface. A cable length of 500 mm connects the antenna element to the host device. This configuration allows for versatile mounting options within compact electronic enclosures while maintaining signal integrity across both designated RF bands.

Feature Summary

Dual-band operation supporting 2.4 GHz and 5.8 GHz WiFi frequencies
Flexible Printed Circuit Board (FPC) design for adaptable installation
Integrated IPEX connector for direct RF interface connection

Applications

Wireless router internal antennas
IoT gateway modules
Embedded WiFi network adapters

Procurement Notes

Verify the specific connector polarity and mating cycle ratings against the official Siretta datasheet before integration. Confirm that the 500 mm cable length aligns with the mechanical layout constraints of the target PCB assembly. Ensure the IPEX connector type matches the host board footprint to prevent interface incompatibility during procurement.

Selection Notes

Select this model when flexible form factor is required for tight spatial constraints. The dual-band capability supports both legacy 2.4 GHz and higher-speed 5 GHz networks. Consider the FPC material properties for thermal resistance if operating in high-temperature environments. Verify impedance matching requirements for the specific application bandwidth.

Part Context

This component belongs to the Siretta Echo series, which specializes in compact RF solutions. The ECHO28B variant specifically utilizes FPC technology to enable non-rigid mounting configurations. It serves as a specialized alternative to rigid dipole or patch antennas where physical flexibility and low profile are critical design parameters for modern consumer electronics.

Replacement Considerations

Check for ECHO28B variants with different cable lengths or connector types from the same manufacturer family. Ensure any substitute maintains identical dual-band frequency coverage and FPC flexibility characteristics.
