ECHO34/0.1M/UFL/S/S/17

Antennas RF Overview

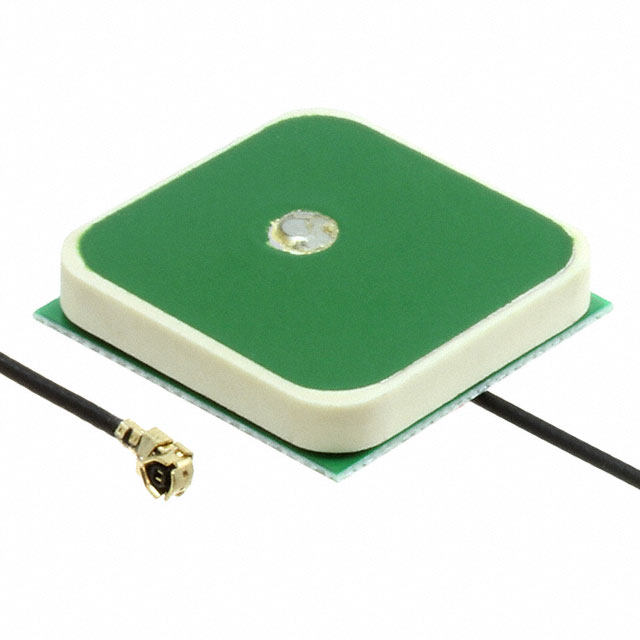

The Siretta ECHO34/0.1M/UFL/S/S/17 is a compact, embedded ceramic patch antenna designed for low-profile applications. It supports Bluetooth (BLE), WiFi, and Zigbee protocols within the 2.4GHz frequency range. The unit features an omnidirectional radiation pattern with a gain of 2dBi. It includes a 100mm cable terminating in a U.FL (UMCC) connector with female polarity. The antenna measures 25 x 25 x 4mm and utilizes surface mount installation.

Antennas RF Feature Summary

• Compact ceramic patch design suitable for space-constrained embedded devices
• Supports multiple wireless protocols including BLE, WiFi, and Zigbee
• Low-profile physical form factor for seamless integration

Antennas RF Applications

• Embedded IoT modules requiring multi-protocol connectivity
• Portable consumer electronics with limited internal volume
• Industrial sensors utilizing BLE or WiFi communication

Antennas RF Procurement Notes

Verify that the U.FL connector polarity matches the host board interface. Confirm the 100mm cable length accommodates the mechanical layout without strain. Ensure the operating environment temperature range aligns with the component specifications. Check for any specific regulatory certifications required for the target market deployment.

Antennas RF Selection Notes

Select this model when a low-profile solution supporting both WiFi and Bluetooth is required. The 2.4GHz single-band operation distinguishes it from dual-band alternatives. Consider the U.FL connector type for compatibility with existing RF traces. The small footprint makes it preferable over larger whip or external antennas.

Antennas RF Part Context

This component belongs to the Echo 34 series by Siretta Ltd. The series focuses on embedded ceramic patch antennas for wireless connectivity. It is distinct from the Echo 31 series, which offers different frequency ranges and connector types. The part number suffixes indicate specific cable lengths and connector configurations.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative Siretta models such as those in the Echo 31 series if protocol support differs.
