ECHO44/0.2M/SMAM/36

$3.66

Description：5G C-BAND AND WI-FI 7 FLEXIBLE P
Series：Echo 44
Mfr：Siretta Ltd
Package：Bulk

SKU:1795351d6ba8 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO44/0.2M/SMAM/36 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 5G C-BAND AND WI-FI 7 FLEXIBLE P. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO44/0.2M/SMAM/36

Description：5G C-BAND AND WI-FI 7 FLEXIBLE P
Series：Echo 44
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：4.35GHz, 4.487GHz
Frequency Range：2GHz ~ 6.525GHz, 2.45GHz ~ 6.7GHz
Antenna Type：Flat Patch
Number of Bands：2
VSWR：-
Return Loss：-
Gain：6.93dBi, 6.93dBi
Features：Cable - 100mm
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.009" (0.24mm)
Applications：5G, 802.11 ac/ax/be, Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：50 W

Antennas RF datasheet and documents for ECHO44/0.2M/SMAM/36

ECHO44/0.2M/SMAM/36

Antennas RF Overview

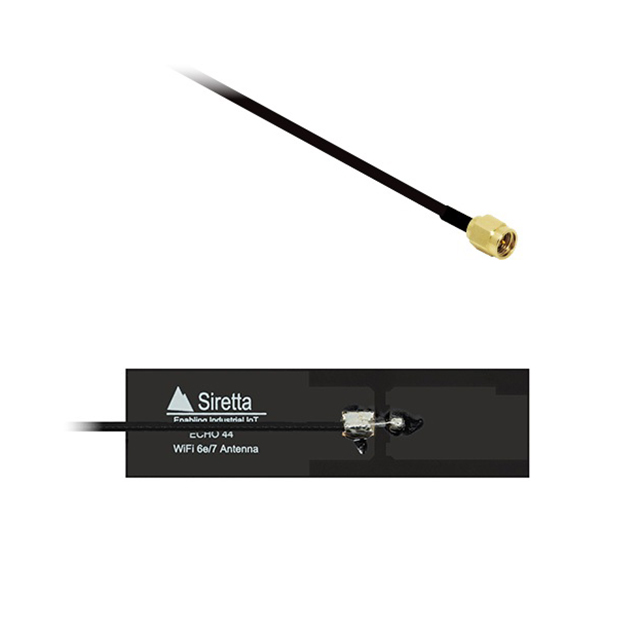

The Siretta ECHO44/0.2M/SMAM/36 is a flexible printed circuit multi-band antenna designed for high-frequency wireless applications. It operates across the 5G C-Band and WiFi 7 spectrum, supporting protocols including 5G, 4G (LTE), 3G (UMTS), NB-IoT, ZigBee, and ISM bands. The unit features an SMA male connector with a 0.2-meter RG316 cable length. Constructed as a flexible PCB trace, it offers omnidirectional radiation patterns suitable for compact device integration.

Antennas RF Feature Summary

Supports 5G C-Band and WiFi 7 frequency ranges
Flexible printed circuit construction for compact mounting
Integrated SMA male connector with short cable lead

Antennas RF Applications

5G cellular module integration
WiFi 7 router and access point deployment
IoT devices requiring NB-IoT or ZigBee connectivity

Antennas RF Procurement Notes

Verify that the SMA male connector polarity matches the host equipment interface. Confirm the 0.2-meter cable length accommodates the internal chassis layout without strain. Ensure the flexible PCB form factor fits the designated enclosure space. Check regulatory compliance requirements for the target market before finalizing procurement.

Antennas RF Selection Notes

Select this model when simultaneous support for 5G C-Band and WiFi 7 is required in a single antenna solution. The flexible PCB design allows for non-standard mounting orientations compared to rigid rod antennas. Consider the short cable length for applications where the antenna must be positioned close to the RF transceiver module.

Antennas RF Part Context

This component belongs to the Siretta ECHO series of flexible PCB antennas. It is engineered specifically for modern multi-protocol wireless gateways and industrial IoT modules. The design prioritizes space efficiency while maintaining performance across diverse cellular and Wi-Fi standards.
