ECS-5032MV-120-BM-TR

Oscillators Overview

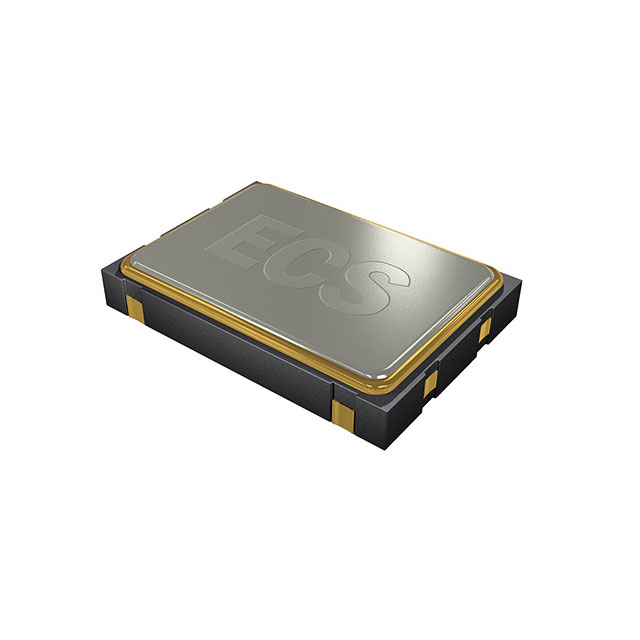

The ECS-5032MV-120-BM-TR is a standard clock oscillator from the MultiVolt series, manufactured by ECS Inc. It operates at a frequency of 12 MHz with a frequency stability of ±50 ppm and a load capacitance of 15 pF. The device supports a supply voltage range of 1.6 V to 3.6 V and features an HCMOS output format with a maximum duty cycle of 55%. It is designed for surface mount (SMD/SMT) installation in a 4-pin package measuring 5 mm x 3.2 mm x 1.3 mm. The component functions within an operating temperature range of -20°C to +70°C.

Oscillators Feature Summary

• Multi-Volt operation supporting 1.6V to 3.6V supply ranges
• HCMOS output signal format
• Surface-mount SMD package design

Oscillators Applications

• Low power portable devices
• Industrial equipment
• Internet of Things (IoT) systems

Oscillators Procurement Notes

Verify the specific suffix against official documentation to confirm exact electrical parameters, as variations exist within the series. Confirm RoHS compliance status and ensure the supplier provides valid traceability documents. Cross-reference the manufacturer part number with distributor catalogs to validate current availability and technical specifications before procurement.

Oscillators Selection Notes

Select this component when a 12 MHz reference signal is required for digital logic or signal conditioning applications. Ensure the system design accommodates the 1.6V to 3.6V supply range and the specified operating temperature limits. Verify that the HCMOS output compatibility matches the receiving circuit inputs for proper signal integrity.

Oscillators Part Context

This oscillator belongs to the ECS-5032MV MultiVolt series, which offers flexible voltage operation. The 5032 package size provides a compact solution for space-constrained designs. The series is engineered for reliability in both consumer and industrial environments, utilizing standard crystal oscillator technology.

Oscillators Replacement Considerations

Direct substitutes include other 12 MHz HCMOS oscillators in the 5032 SMD package with compatible voltage ranges. Verify pinout compatibility and frequency stability requirements when evaluating alternative manufacturers.
