EM-BFG11905-NJ is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 915MHZ WHIP STR N FEM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for EM-BFG11905-NJ
- Description：RF ANT 915MHZ WHIP STR N FEM
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：915MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：IP66
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：20.669" (525.00mm)
- Applications：-
- Power - Max：100 W
Antennas RF datasheet and documents for EM-BFG11905-NJ
Antennas RF Overview

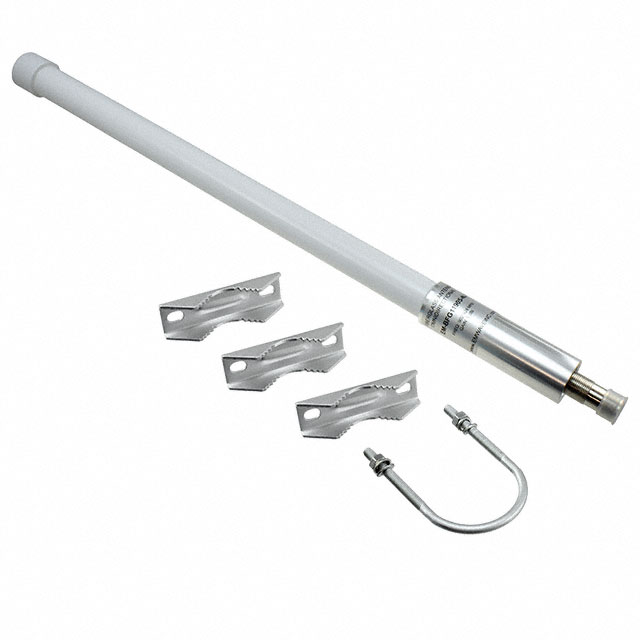

The EM-BFG11905-NJ is a single-band whip antenna manufactured by Nearson Inc., designed for UHF applications within the 300MHz to 1GHz range. It operates specifically at 915MHz, covering the frequency band from 902MHz to 928MHz. The component features a straight whip design with a gain of 5dBi and utilizes an N Type Female connector for mounting. Its physical dimensions include a maximum height of 20.669 inches (525.00mm). The antenna is packaged in bulk and offers IP66 ingress protection.
Antennas RF Feature Summary
- Straight whip design optimized for UHF frequencies
- IP66 water-resistant rating with drain holes
- DC grounded construction for static and lightning protection
Antennas RF Applications
- RF/IF and RFID systems
- Omni base station antennas
- Custom RF equipment requiring 915MHz operation
Antennas RF Procurement Notes
Verify the specific datasheet version provided by Nearson Inc. or authorized distributors to confirm current manufacturing status and technical specifications. Ensure compatibility with N Type Female connectors on the receiving equipment. Check for any recent updates to the IP66 rating or grounding requirements before final integration into sensitive RF environments.
Antennas RF Selection Notes
Select this component when a fixed-gain 5dBi antenna is required for the 902-928MHz band. The straight whip form factor suits vertical polarization needs. Consider the 525mm height constraint for installation space. The N Type Female interface dictates compatible cabling and adapter requirements for system integration.
Antennas RF Part Context
This part belongs to Nearson's EM series of RF antennas, which includes various models like EM-B40004-NJ and EM-M20007. The EM-BFG11905-NJ is categorized under RF/IF and RFID components, specifically focusing on UHF whip antennas. It is distinct from Omni Base Station variants that may share similar protective features but differ in radiation patterns.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fitment and electrical impedance matching if considering alternative manufacturers offering similar 915MHz N-Type female whip antennas.
