EP3SE260H780I3G

Field Programmable Gate Array Overview

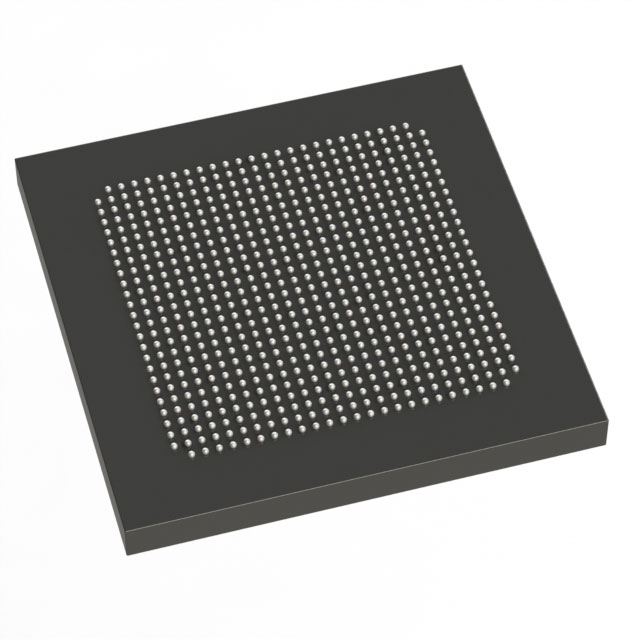

The EP3SE260H780I3G is a Stratix III Field Programmable Gate Array (FPGA) manufactured by Altera. It features 104,000 logic elements and 41,600 Adaptive Logic Modules (ALMs). The device includes 15.9 Mbit of embedded memory organized in blocks. It supports up to 488 I/O pins and utilizes a 780-ball High-Ball Grid Array (HBGA) package. The component operates within an industrial temperature range and meets RoHS compliance standards.

Field Programmable Gate Array Feature Summary

• Supports high-density logic implementation through Adaptive Logic Modules for efficient resource utilization.
• Integrates substantial on-chip memory capacity suitable for complex data buffering and storage applications.
• Provides extensive I/O connectivity options to interface with various peripheral devices and systems.

Field Programmable Gate Array Applications

• High-performance digital signal processing systems
• Complex communication protocol implementations
• Industrial automation control units

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I3G' against official manufacturer documentation to confirm the exact speed grade and temperature rating. Ensure compatibility with the required PCB footprint and thermal management solutions before finalizing procurement orders.

Field Programmable Gate Array Selection Notes

Compare the 104,000 LE count and 15.9 Mbit memory against project requirements to ensure sufficient resources. Evaluate the HBGA package constraints regarding board space and routing complexity relative to alternative packages in the Stratix III family.

Field Programmable Gate Array Part Context

This component belongs to the Stratix III FPGA family, designed for mid-to-high density applications. It succeeds earlier generations by offering improved performance per watt and enhanced embedded memory capabilities compared to previous Stratix devices.

Field Programmable Gate Array Replacement Considerations

Direct replacements are limited due to specific package and speed grade variations. Consider migrating to newer Intel FPGA families such as Arria or Cyclone series if pin compatibility allows, though architectural differences require design re-verification.
