EP3SL200F1152C4G

Field Programmable Gate Array Overview

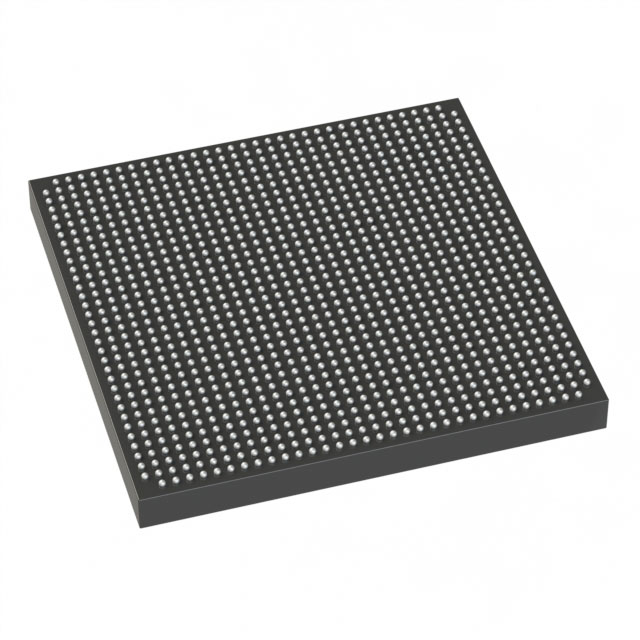

The Altera EP3SL200F1152C4G is a Stratix III Field Programmable Gate Array featuring 200,000 logic elements and 80,000 adaptive logic modules. It integrates 10.4 Mbit of embedded memory, including 1250 kbit of embedded block RAM, within an FBGA-1152 package providing 744 I/Os. The device operates at supply voltages between 1.2 V and 3.3 V, with a commercial temperature range of -40°C to +85°C. It supports SMD/SMT mounting and complies with RoHS standards.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture utilizing adaptive logic modules for efficient resource utilization.
• Integrated high-capacity embedded memory subsystem supporting complex data processing applications.
• Extensive I/O interface capabilities accommodating diverse peripheral connectivity requirements.

Field Programmable Gate Array Applications

• Telecommunications infrastructure equipment
• Industrial automation control systems
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized channels due to potential lifecycle variations. Confirm specific suffix designations match project requirements as they may indicate environmental or packaging differences. Check current availability status as distribution networks vary by region. Ensure proper handling procedures are followed given moisture sensitivity classification levels defined in datasheets.

Field Programmable Gate Array Selection Notes

Compare against alternative Stratix III variants based on pin count and logic density needs. Evaluate power consumption profiles against thermal management constraints. Consider software compatibility with Quartus Prime design tools. Assess long-term supply stability given the mature product category status of this FPGA family.

Field Programmable Gate Array Part Context

This component belongs to the Stratix III family, representing a mid-range solution within Altera's historical FPGA portfolio. It bridges performance gaps between lower-end Cyclone devices and higher-end Stratix IV architectures. The series was designed for cost-sensitive applications requiring moderate logic capacity without excessive power draw.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements are limited within the same package. Consider upgrading to Stratix IV or V families for enhanced performance, though redesign may be necessary. Verify if legacy support options exist for discontinued components through official manufacturer channels.
