EP4SE530H35C3G

Field Programmable Gate Array Overview

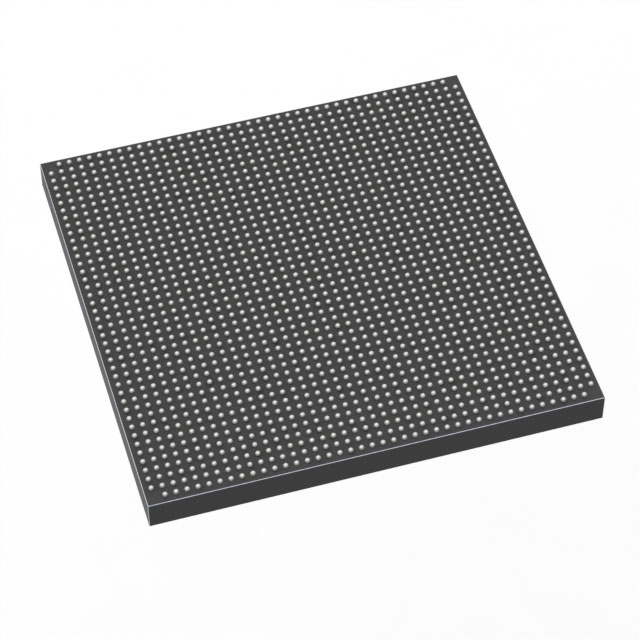

The EP4SE530H35C3G is a Stratix IV E Field Programmable Gate Array manufactured by Altera. It features 531,200 logic elements and 212,480 adaptive logic modules within a BGA-1152 package. The device includes 26.73 Mbit of embedded memory and supports 744 I/Os. Operating at a maximum frequency of 600 MHz, it functions with a core voltage of 900 mV across an industrial temperature range of -40°C to +85°C. This component is part of the enhanced Stratix IV family designed for high-density applications.

Field Programmable Gate Array Feature Summary

• Supports high-performance digital signal processing through extensive embedded memory resources
• Enables complex system integration via a large number of available input/output pins
• Provides robust logic capacity suitable for demanding computational tasks

Field Programmable Gate Array Applications

• High-speed data acquisition systems
• Advanced telecommunications infrastructure equipment
• Industrial automation control units

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized channels due to potential availability constraints. Confirm RoHS compliance status as indicated in official documentation. Ensure proper handling procedures are followed given moisture sensitivity classification. Validate that the specific suffix corresponds to required environmental ratings before finalizing procurement orders.

Field Programmable Gate Array Selection Notes

Evaluate whether the 531,200 logic element count meets current design requirements without excessive overhead. Consider the 744 I/O limit against interface needs. Assess if the 600 MHz operating speed aligns with timing constraints. Compare power consumption profiles against thermal management capabilities in the target enclosure environment.

Field Programmable Gate Array Part Context

This component belongs to the Stratix IV E series, which offers enhanced performance relative to standard variants. It utilizes TSMC's 40-nm technology node. The device shares architectural similarities with other EP4SE models but differs in specific logic density and pin configurations. It represents a mature generation of FPGA technology from Altera.

Field Programmable Gate Array Replacement Considerations

Direct substitutes include EP4SE530H35I3G and EP4SE530H35I4N. Verify pin compatibility and electrical specifications before substitution. Ensure software toolchain support remains consistent across alternative part numbers.
