EQRD13K2J-156.250M TR

Oscillators Overview

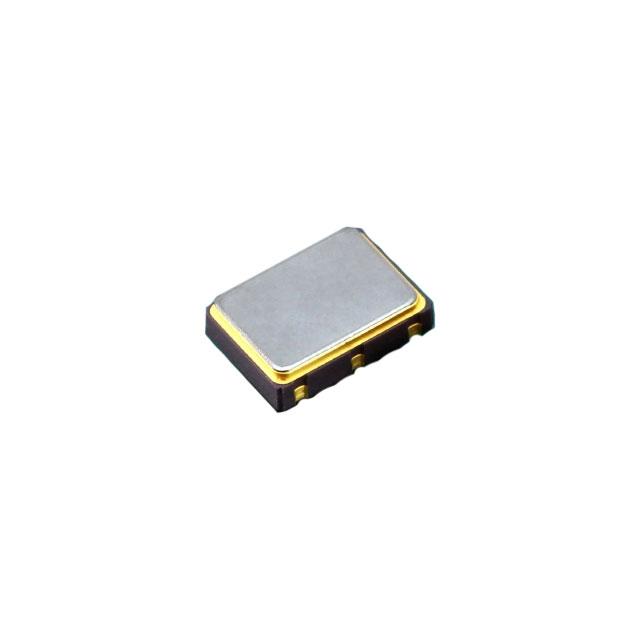

The EQRD13K2J-156.250M TR is a standard crystal oscillator (SPXO) from the Ecliptek EQRD13 series, operating at a nominal frequency of 156.25 MHz with LVPECL output logic. It utilizes a 7mm x 5mm 6-pad SMD package and requires a 3.3V supply voltage. The device features a frequency stability of ±50 ppm over a -40°C to +85°C temperature range, inclusive of calibration tolerance, temperature stability, supply voltage changes, load variations, first-year aging, and reflow soldering effects. Key electrical characteristics include a maximum rise/fall time of 400 ps, a duty cycle of 50% ±5%, and an RMS phase jitter of 200 fs within a 12 kHz to 20 MHz bandwidth. It supports standby control via pin configuration, drawing a maximum operating current of 50 mA and a standby current of 10 μA.

Oscillators Feature Summary

• Provides low-jitter LVPECL clock signals suitable for high-speed serial data transmission applications.
• Integrates configurable standby functionality allowing for power-down states with rapid wake-up capabilities.
• Delivers comprehensive frequency stability metrics covering environmental and operational variances in a single specification.

Oscillators Applications

• Reference clock sources for 10G Ethernet interfaces
• Clock generation for FPGA systems
• Timing references for optical transceiver modules

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency tolerance and temperature range specifications for your application. Confirm that the LVPECL output voltage levels are compatible with the receiving circuitry's input thresholds. Ensure the PCB footprint aligns with the 7mm x 5mm 6-pad SMD package dimensions to prevent mounting issues during assembly.

Oscillators Selection Notes

Select this component when a standard SPXO with LVPECL output is required for frequencies around 156.25 MHz. Consider the ±50 ppm stability rating against system timing budgets. Evaluate the need for standby control if power management is critical. Compare phase jitter performance against other oscillators in the same package size to ensure signal integrity requirements are met for the target data rate.

Oscillators Part Context

This model belongs to the EQRD13 series of surface-mount MEMS oscillators manufactured by Ecliptek. The series offers various output logic options including LVPECL, LVDS, and CMOS across different frequency ranges. These devices are designed for industrial and consumer electronics applications requiring reliable timing solutions in compact form factors.

Oscillators Replacement Considerations

Direct substitutes within the EQRD13 series may be available with different frequency tolerances or output types. Cross-referencing with other manufacturers' LVPECL oscillators in the 7x5mm package requires careful verification of pinout compatibility and electrical parameter alignment.

Oscillators FAQ

What is the maximum operating current for this oscillator?

The maximum operating current is 50 mA when powered on.

How is the standby function configured?

The standby function is controlled by configuring specific pins; pulling the designated pin low activates the high-impedance shutdown state.
