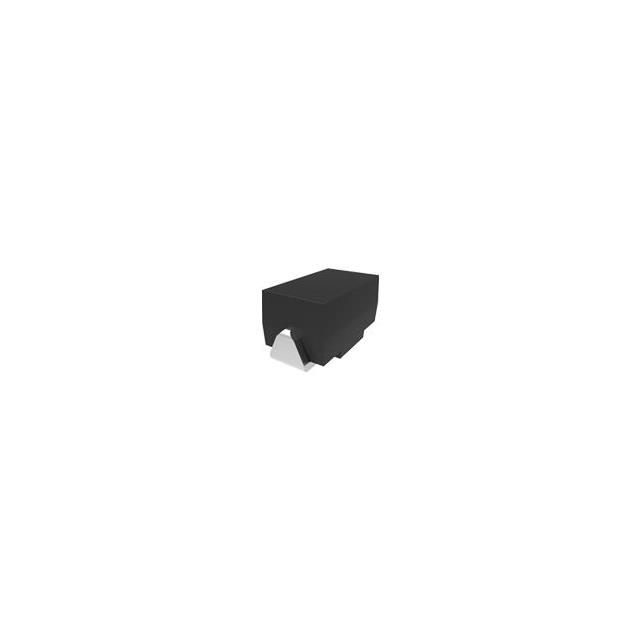

ES1AE-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE STANDARD 50V 1A DO214AC. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for ES1AE-TP
- Description：DIODE STANDARD 50V 1A DO214AC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：50 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：975 mV @ 1 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 µA @ 50 V
- Capacitance @ Vr, F：45pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC (SMAE)
- Operating Temperature - Junction：-50°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for ES1AE-TP
Single Diodes Overview
The ES1AE-TP is a single ultra-fast recovery rectifier manufactured by Micro Commercial Components. It features a 50 V reverse voltage rating and supports a continuous forward current of 1 A. The device exhibits a maximum forward voltage of 975 mV and a reverse leakage current of 5 uA. Key electrical characteristics include a peak surge current capability of 30 A and a fast recovery time of 50 ns. It operates within a temperature range of -50 C to +150 C junction temperature. The component is housed in the DO-214AC (SMA) surface-mount package.
Single Diodes Feature Summary
- Ultra-fast recovery performance with a 50 ns switching speed for efficient high-frequency operation
- Epoxy formulation meets UL 94 V-0 flammability ratings for enhanced safety compliance
- Lead-free finish and RoHS compliant construction supporting environmentally conscious manufacturing
Single Diodes Applications
- High-frequency switching power supplies
- Polarity protection circuits
- Free-wheeling diode applications in DC-DC converters
Single Diodes Procurement Notes
Verify current availability status as the component may be discontinued or subject to limited supply constraints. Confirm that the ordering suffix designates lead-free and RoHS compliance. Ensure the DO-214AC package footprint matches the target PCB layout requirements before finalizing procurement decisions.
Single Diodes Selection Notes
Select this component when a compact surface-mount solution is required for low-voltage, high-speed rectification tasks. The 50 V rating suits applications with moderate reverse voltage stress. Consider the 1 A current limit and thermal management needs for the SMA package when designing the circuit layout.
Single Diodes Part Context
This part belongs to the ES1 series of ultra-fast recovery rectifiers from Micro Commercial Components. The series offers various voltage ratings while maintaining consistent 1 A forward current capabilities. The ES1AE-TP specifically targets the 50 V segment of this product line, providing a standardized interface for designers requiring reliable high-speed switching components.
Single Diodes Replacement Considerations
Consult official manufacturer documentation for confirmed substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before implementing any alternative components in existing designs.
