ES1DFL-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE STANDARD 200V 1A DO221AC. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for ES1DFL-TP
- Description：DIODE STANDARD 200V 1A DO221AC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 600 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

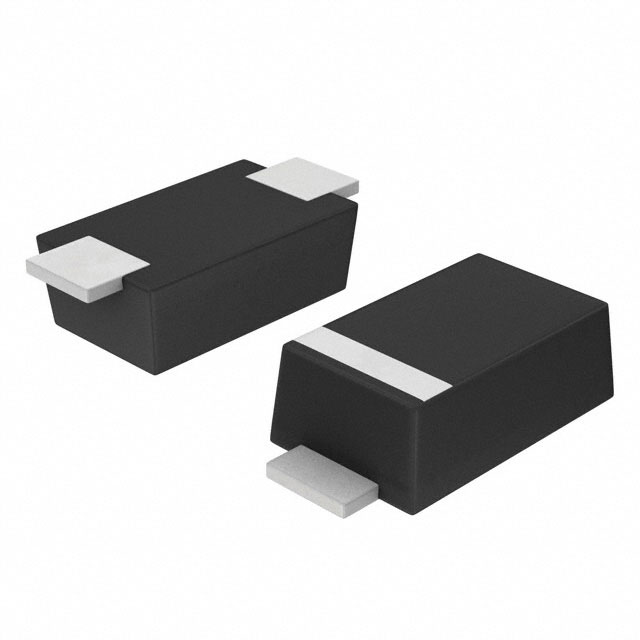

- Package / Case：DO-221AC, SMA Flat Leads
- Supplier Device Package：DO-221AC (SMA-FL)
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for ES1DFL-TP
Single Diodes Overview
The ES1DFL-TP is a super fast recovery silicon rectifier manufactured by Micro Commercial Components. It features a maximum average forward rectified current of 1A and a peak repetitive reverse voltage of 200V. The device exhibits a typical reverse recovery time of 35ns and a maximum forward voltage of 1.7V at 1A. It operates within a junction temperature range of -55°C to 150°C and utilizes the DO-221AC (SMA-FL) surface mount package.
Single Diodes Feature Summary
- Super fast recovery performance with 35ns reverse recovery time
- High thermal stability supporting up to 150°C junction temperature
- Compact SMA-FL surface mount packaging for automated assembly
Single Diodes Applications
- High frequency switching power supplies
- Free wheeling diodes in inductive load circuits
- Polarity protection in DC power systems
Single Diodes Procurement Notes
Verify component authenticity through authorized distributors as the part is marked Not Recommended for New Designs. Confirm RoHS compliance status via official datasheets before integration. Check current supply constraints due to limited availability from major retailers. Ensure ordering suffixes match exact package requirements.
Single Diodes Selection Notes
Select this component for applications requiring rapid switching speeds and moderate current handling. Compare reverse recovery characteristics against standard rectifiers for efficiency gains. Verify package compatibility with existing PCB footprints. Consider thermal management requirements given the high junction temperature rating.
Single Diodes Part Context
This rectifier belongs to the ES1DFL series from Micro Commercial Components, designed for general purpose high speed rectification. It serves as a surface mount alternative to through-hole devices, offering improved mounting density. The series targets modern electronics requiring compact, reliable power conversion components.
Single Diodes Replacement Considerations
Consult manufacturer documentation for direct pin-compatible substitutes within the same series. Verify electrical parameters match or exceed original specifications when evaluating alternatives.
