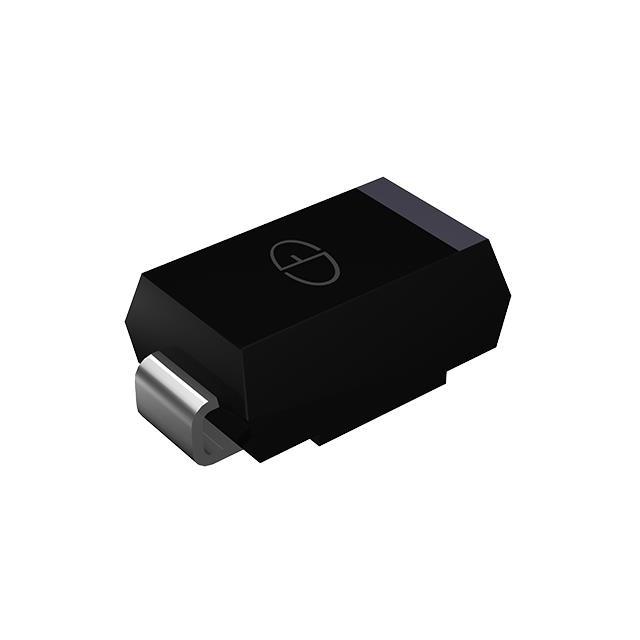

ES2BA is listed in the Single Diodes range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is DIODE STANDARD 100V 2A DO214AC. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for ES2BA
- Description：DIODE STANDARD 100V 2A DO214AC
- Series：-
- Mfr：Good-Ark Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：2A
- Voltage - Forward (Vf) (Max) @ If：920 mV @ 2 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 100 V
- Capacitance @ Vr, F：25pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC (SMA)
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for ES2BA
Single Diodes Overview
The Good-Ark ES2BA is a super fast recovery rectifier in the DO-214AC (SMA) package. It features a maximum repetitive peak reverse voltage of 100V and a maximum average forward rectified current of 2A at 110°C case temperature. The device exhibits a typical instantaneous forward voltage of 1.7V at 2.0A DC, with a typical junction capacitance of 35pF at 4.0V reverse bias and 1MHz frequency. Operating junction and storage temperature ranges span from -55°C to +150°C.
Single Diodes Feature Summary
- Glass passivated chip construction for enhanced stability
- Super fast switching characteristics designed for high efficiency applications
- Low forward voltage drop combined with high current capability
- Plastic material carries Underwriters Laboratories classification 94V-0
Single Diodes Applications
- Surface mounted applications requiring compact form factors
- High frequency inverters utilizing super fast recovery properties
- Free wheeling diode circuits in power conversion systems
- Polarity protection implementations in low voltage environments
Single Diodes Procurement Notes
Verify component authenticity by cross-referencing the marking code against official Good-Ark Semiconductor documentation. Confirm the DO-214AC package dimensions match the specified outline drawings. Ensure the supplier provides traceability data consistent with the manufacturer's quality standards. Request electrical characteristic test reports to validate performance parameters before integration into production designs.
Single Diodes Selection Notes
Select the ES2BA when a 100V reverse blocking capability is required alongside a 2A continuous current rating. This component is suitable for designs prioritizing surface mount assembly through the SMA footprint. Consider the 1.7V forward voltage drop for thermal management calculations. Evaluate the 35pF junction capacitance for high-frequency circuit compatibility requirements.
Single Diodes Part Context
The ES2BA belongs to the ES2xA series of super fast recovery rectifiers manufactured by Good-Ark Semiconductor. This series encompasses variants ranging from ES2AA to ES2JA, offering reverse voltages from 50V to 600V. All devices share the same DO-214AC package and 2A forward current rating, differing primarily in their breakdown voltage specifications.
Single Diodes Replacement Considerations
Compatible substitutes within the ES2xA series include ES2AA, ES2CA, ES2DA, ES2FA, ES2GA, and ES2JA, provided the specific reverse voltage requirements align with the application design constraints.
