F145AM-3500S

Antennas RF Overview

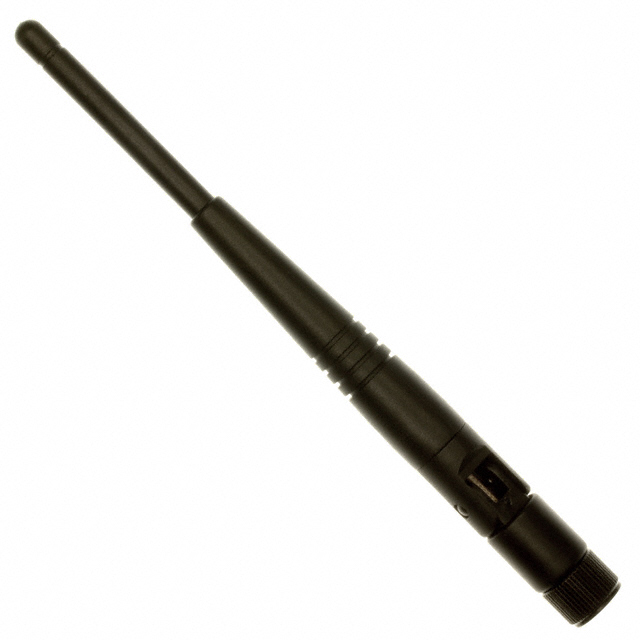

The Nearson F145AM-3500S is a UHF rubber ducky antenna designed for operation within the 3.4GHz to 3.6GHz frequency range, with a center frequency of 3.6GHz. It features a straight whip configuration and provides a gain of 2dBi. The component utilizes an SMA male connector for mounting and interface connections. This RF antenna is constructed as a durable rubber ducky style unit suitable for fixed installation scenarios requiring reliable wireless signal transmission in the specified microwave band.

Antennas RF Feature Summary

• Straight whip design with rubber ducky construction
• Operates in the 3.4GHz to 3.6GHz UHF band
• Equipped with an SMA male connector

Antennas RF Applications

• UHF wireless communication systems
• Microwave data transmission links
• Industrial RF equipment interfaces

Antennas RF Procurement Notes

Verify that the required operating frequency aligns strictly with the 3.4GHz to 3.6GHz specification. Confirm the necessity of the SMA male connector type for your specific host device interface. Ensure compliance with RoHS standards if environmental regulations apply to your project. Cross-reference the physical dimensions against your enclosure constraints before finalizing procurement.

Antennas RF Selection Notes

Select this model when a fixed-mount solution is required for the 3.6GHz band. The straight whip form factor suits applications where space allows for vertical orientation. Consider the 2dBi gain level relative to your link budget requirements. Evaluate the SMA male interface compatibility with existing system connectors to ensure seamless integration without additional adapters.

Antennas RF Part Context

This component belongs to the Nearson RF antenna family, specifically categorized under UHF whip antennas. It shares the general rubber ducky construction style with other models in the series but is distinctively tuned for the 3.4GHz to 3.6GHz spectrum. The SMA male connector standardizes its interface within common RF testing and communication hardware ecosystems.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications carefully when considering alternative manufacturers or different Nearson models with varying frequency ranges or connector types.
