F1892SD1200

$164.63

Description：MODULE SCR/DIODE 90A 480VAC
Series：F18

SKU:4c0d0672fc8f Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE SCR/DIODE 90A 480VAC
Series：F18
Mfr：Sensata-Crydom
Package：Bulk
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：1.2 kV
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：1950A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

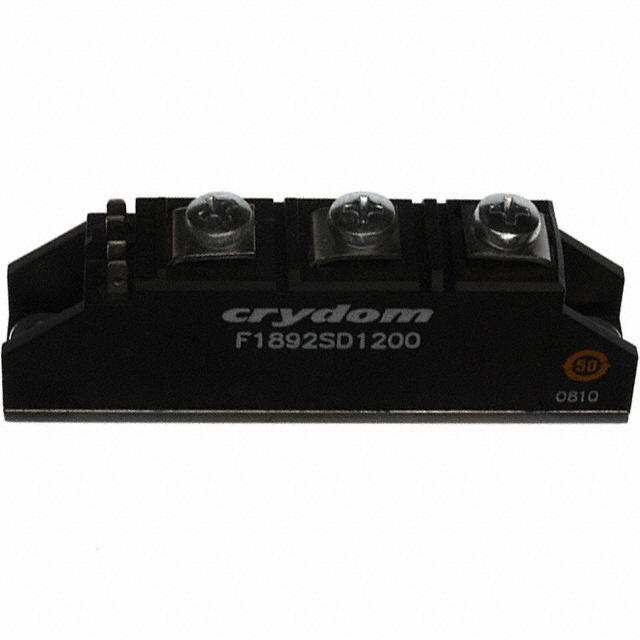

F1892SD1200

Overview

The F1892SD1200 is a discrete semiconductor module manufactured by Sensata-Crydom, belonging to the F18 series. It is configured as a series-connected SCR and diode assembly designed for base mounting applications. The component features a seven-terminal flange mount package with isolated case connection. Electrical specifications include a maximum DC output current of 90A at an ambient temperature of 85°C and a peak non-repetitive surge current capability of 1950A at 60Hz. The device operates within a junction temperature range of -40°C to 125°C.

Feature Summary

Series-connected SCR and diode configuration
Flange mount package with isolated case
High surge current handling capability

Applications

Industrial power control systems
Solid state power switching circuits
Motor drive applications

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical ratings and pinout compatibility before procurement. Confirm RoHS compliance status and check for any product change notices or obsolescence announcements from Sensata-Crydom. Ensure thermal management solutions match the module's heat dissipation requirements for reliable operation.

Selection Notes

Select this module based on its 90A continuous current rating and 1200V blocking voltage suitability for medium-power industrial loads. Evaluate the thermal resistance characteristics to ensure adequate heatsinking for the intended operating environment. Consider the series SCR/diode topology for applications requiring specific rectification and switching behaviors within the same package.

Part Context

This component is part of the F18 series of solid-state power switching modules from Sensata-Crydom. The series offers various circuit configurations including bridge rectifiers and phase control assemblies in industry-standard packages. These modules are designed for robust performance in demanding industrial environments, providing UL recognition for safety compliance.
