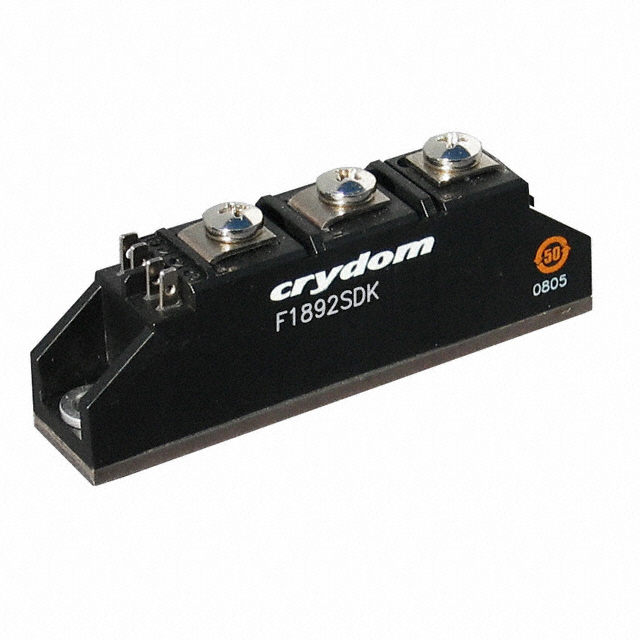

F1892SDK1000

$160.99

Description：MODULE SCR/DIODE 90A 380VAC
Series：F18

SKU:c5bf8bd0b13a Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE SCR/DIODE 90A 380VAC
Series：F18
Mfr：Sensata-Crydom
Package：Bulk
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：1 kV
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：1950A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

F1892SDK1000

Overview

The F1892SDK1000 is a discrete semiconductor module manufactured by Sensata-Crydom, classified as an SCR/Diode power module. It features a series configuration containing one Silicon Controlled Rectifier and one diode. The device supports screw mount installation and operates within a junction temperature range of -40°C to 130°C. Key electrical parameters include a maximum forward voltage of 1.4 V and a gate trigger current maximum of 150 mA. The component is currently obsolete.

Feature Summary

Industry standard package design for compatibility
Series SCR and diode configuration
Screw mount construction

Applications

Power control building blocks
Industrial AC motor reversing applications
Harsh environment power switching

Procurement Notes

This component is officially listed as obsolete and no longer in production. Verification of availability should focus on surplus distributors or confirmed substitute part numbers. Procurement requires confirmation that the source provides genuine Sensata-Crydom inventory rather than generic alternatives.

Selection Notes

Selection should consider the specific voltage and current requirements compatible with the 1 kV rating and 90 A capacity. The industry standard package facilitates integration into existing designs. Engineers must evaluate thermal management capabilities within the specified operating temperature range for reliable performance.

Part Context

The F1892SDK1000 belongs to the Crydom F-18 series of SCR/Diode power modules. This series is characterized by industry-standard packaging and circuits designed for robust power control applications. The module serves as a fundamental building block for industrial solid-state switching systems.
