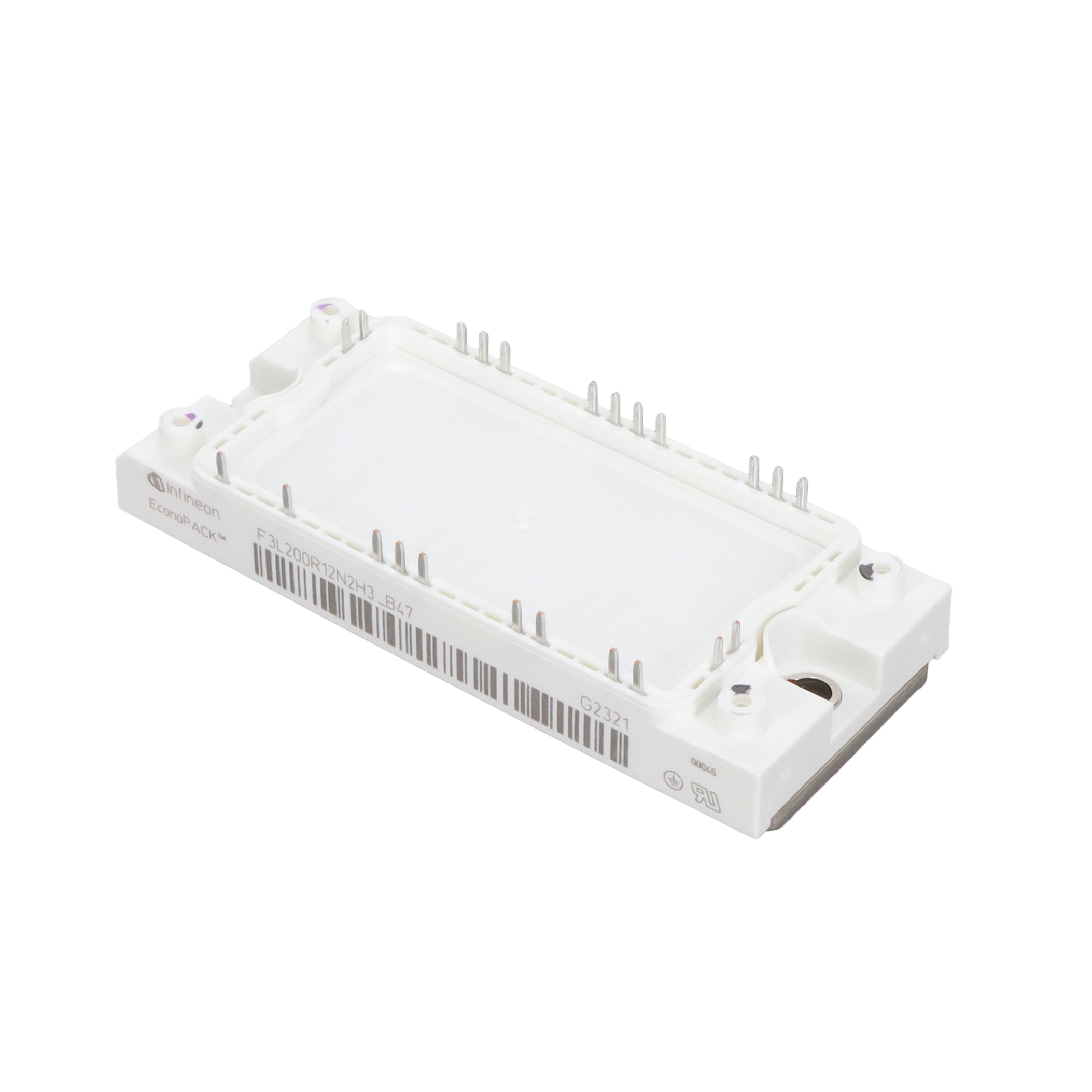

F3L200R12N2H3B47BPSA2

Overview

The F3L200R12N2H3_B47 is an EconoPACK™2 IGBT module featuring active Neutral Point Clamp 2 topology. It integrates High Speed IGBT H3 technology with a 150 A nominal collector current and 1200 V blocking voltage. The inverter section supports up to 400 A repetitive peak current, while the 3-level section handles 300 A peak current. Key electrical parameters include a maximum VCES of 1200 V, VCE(sat) of 2.15 V at 150 A, and Eon/Eoff losses of 4.90 mJ / 6.95 mJ at 150 A. Thermal resistance RthJC is 0.162 K/W per IGBT. The module includes an NTC thermistor (5 kΩ at 25°C), operates from -40°C to +150°C, and provides 2.5 kV AC isolation.

Feature Summary

• Active Neutral Point Clamp 2 topology for three-level applications
• High Speed IGBT H3 technology for low switching losses
• Integrated NTC thermistor for temperature monitoring
• Solder contact technology with copper baseplate

Applications

• Three-level power conversion systems
• Motor drive inverters
• Solar energy inverters
• Uninterruptible Power Supply (UPS) systems

Procurement Notes

Verify the specific ordering suffix B47 against official Infineon documentation to confirm mechanical and electrical specifications. Confirm RoHS compliance status and check for any recent product qualification reports or errata notices before finalizing procurement plans.

Selection Notes

Select this component for designs requiring high efficiency in three-level topologies. Ensure gate resistors are set to 2.4 Ω for the inverter leg and 3.3 Ω for the 3-level leg to match datasheet switching loss conditions. Verify that the thermal interface material conductivity meets the 1 W/(m·K) requirement for accurate thermal calculations.

Part Context

This module belongs to the EconoPACK™2 series, designed for compact industrial power electronics. It utilizes Infineon's High Speed IGBT H3 generation to optimize the trade-off between conduction and switching losses. The package integrates both inverter and 3-level switches within a single housing to reduce parasitic inductance.

Replacement Considerations

Direct replacements must match the 1200 V rating, 150 A nominal current, and EconoPACK™2 footprint. Verify pinout compatibility and ensure the substitute supports active Neutral Point Clamp 2 topology without altering the control loop requirements.

FAQ

What is the maximum short-circuit withstand time for the inverter IGBT?

The inverter IGBT can withstand a short circuit for up to 10 µs at Tvj = 150°C.

What is the rated resistance of the integrated NTC thermistor?

The NTC thermistor has a rated resistance (R25) of 5.00 kΩ at 25°C.

What is the stray inductance value of the module?

The module stray inductance (LsCE) is specified as 17 nH.
