Product Detailed Parameters
- Description：F3L500R12W3H7H20BPSA1
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

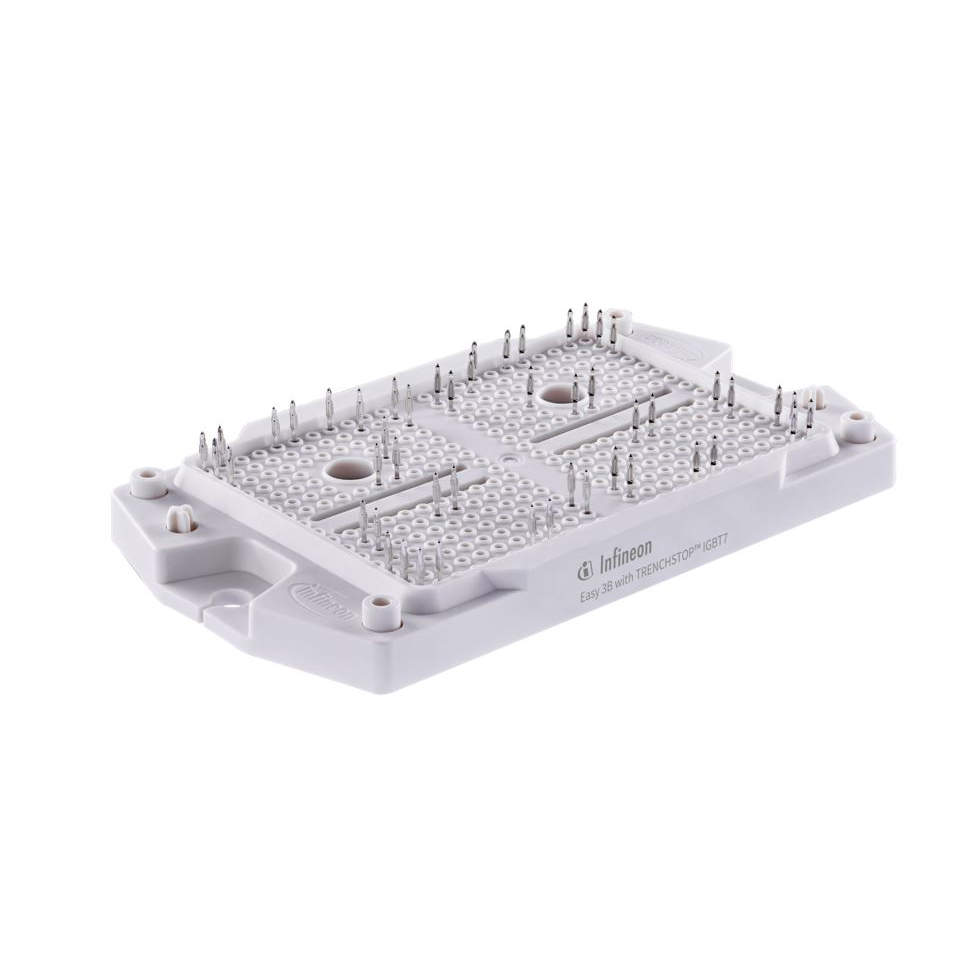

The F3L500R12W3H7H20BPSA1 is a dual IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology within the EASY PLUS package. It features a maximum collector-emitter voltage (VCEO) of 1.2 kV and a continuous collector current (Ic) of 315 A at 25°C. The typical collector-emitter saturation voltage (Vce(sat)) is 1.69 V. The module supports a junction temperature range from -40°C to +150°C and includes an NTC thermistor for thermal monitoring. Designed for press-fit mounting, it offers high power density suitable for demanding industrial applications.
Feature Summary
- Incorporates TRENCHSTOP™ IGBT7 technology for optimized switching performance and low conduction losses.
- Features press-fit termination style for secure mechanical connection and simplified assembly.
- Includes integrated NTC thermistor for precise real-time junction temperature monitoring.
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- High-frequency inverter systems
Procurement Notes
Verify the specific suffix H20 against official datasheets to confirm pinout and terminal configuration compatibility with your PCB or busbar design. Ensure that the press-fit tooling requirements match the module's specifications. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.
Selection Notes
Select this module when a 1.2 kV rating and 315 A continuous current are required in a compact EASY PLUS form factor. Consider the 1.69 V saturation voltage for efficiency calculations in high-current applications. Verify that the system can accommodate the press-fit mounting method and that the thermal management solution supports the specified operating temperature range up to 150°C.
Part Context
This component belongs to Infineon's EASY PLUS series, which provides robust packaging for medium-power applications. The H7 designation indicates the use of TRENCHSTOP™ IGBT7 generation chips, offering improved performance over previous generations. The dual configuration allows for half-bridge or single-phase inverter topologies within a standardized footprint.
Replacement Considerations
Direct replacements must match the 1.2 kV / 315 A specification and EASY PLUS package dimensions. Check for equivalent TRENCHSTOP™ IGBT7 variants with compatible press-fit terminals. Verify that any substitute maintains similar Vce(sat) and switching characteristics to ensure thermal and electrical performance parity.
