F48MR12W2M1HB70BPSA1

$154.11

Description：LOW POWER EASY
Series：-

SKU:e715fddf3df9 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER EASY
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

F48MR12W2M1HB70BPSA1

Overview

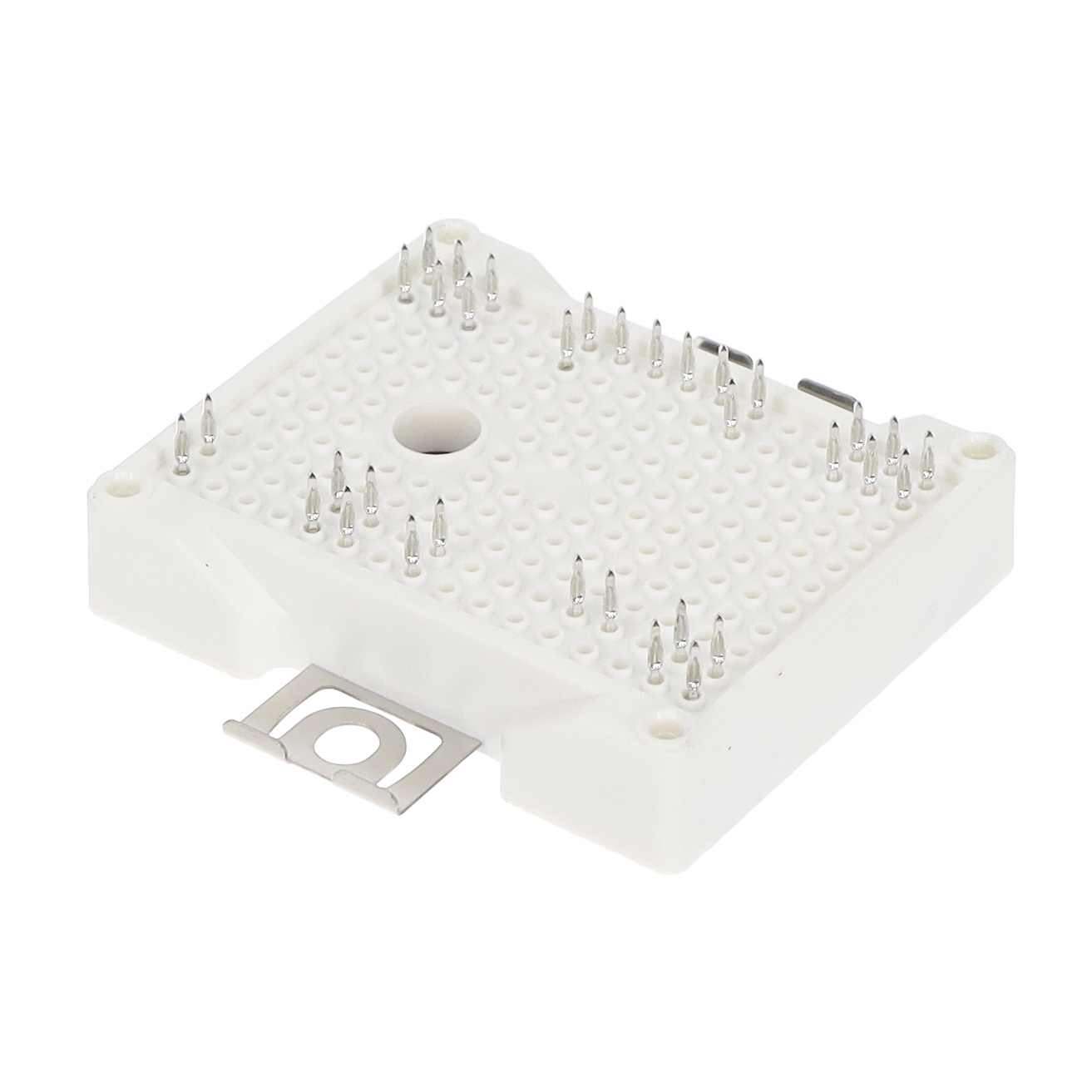

The F48MR12W2M1HB70BPSA1 is a CoolSiC™ MOSFET half-bridge module in the EasyPACK™ package. It features a 1200 V drain-source voltage and a continuous DC drain current of 100 A at 175 °C junction temperature, with a repetitive peak current rating of 200 A. The on-state resistance is typically 8.1 mΩ at 25 °C. The module utilizes PressFIT contact technology and includes an integrated NTC thermistor for thermal monitoring. It employs an AlN substrate to achieve low thermal resistance.

Feature Summary

Low inductive design architecture
Integrated NTC temperature sensor
PressFIT contact technology
AlN substrate with low thermal resistance

Applications

High-frequency switching applications
DC/DC converters
UPS systems
EV DC chargers

Procurement Notes

Verify the specific ordering suffix B70 against official Infineon documentation to confirm exact manufacturing lot codes and compliance status. Ensure that gate driver selection aligns with the recommended operating voltages specified in the datasheet. Confirm mechanical mounting force requirements match the application constraints before procurement.

Selection Notes

Select this component for high-density power conversion designs requiring low switching losses. Evaluate the thermal management strategy based on the provided RthJH value. Verify that the system's maximum operating temperature remains within the -40 °C to +175 °C range. Consider the stray inductance value when designing PCB layouts for optimal performance.

Part Context

This part belongs to the Infineon CoolSiC™ M1H series, utilizing Trench MOSFET technology. It is designed as a direct replacement or upgrade for silicon-based modules in high-efficiency applications. The EasyPACK™ form factor ensures compatibility with standard mounting solutions used in industrial power electronics.

Replacement Considerations

Consult the official cross-reference list for verified substitutes. Ensure any alternative maintains equivalent voltage ratings, current capabilities, and thermal characteristics.
