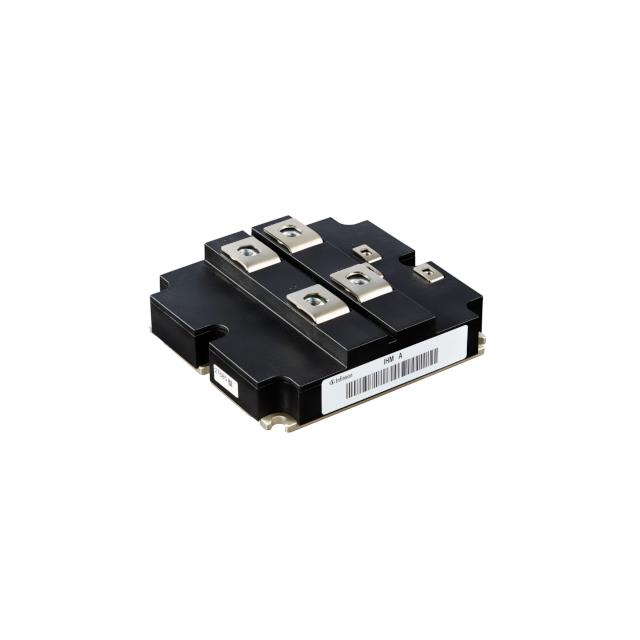

FD1200R17KE3KNOSA1

$807.18

Description：IGBT MOD 1700V 1600A 5950W
Series：EconoPACK™ 4

SKU:1c592dbb1e58 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1700V 1600A 5950W
Series：EconoPACK™ 4
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：Dual Brake Chopper
Vce(on) (Max) @ Vge, Ic：2.45V @ 15V, 1200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 125°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1700 V
Current - Collector (Ic) (Max)：1600 A
Power - Max：5950 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：110 nF @ 25 V

Download product information

FD1200R17KE3KNOSA1

Overview

The FD1200R17KE3-K is a chopper IGBT module from Infineon's IGBT3-E3 series, housed in the IHM package. It features a collector-emitter voltage of 1700 V and a continuous DC collector current of 1200 A at 80°C case temperature. The saturation voltage is typically 2.0 V at 25°C junction temperature. Total power dissipation reaches 5.95 kW at 25°C. The module includes an integrated brake-chopper diode with a forward voltage of 1.8 V. Operating temperatures range from -40°C to +125°C.
