Product Detailed Parameters
- Description：IGBT MODULE 1200V 450A AG62MM-1
- Series：C
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Single Chopper
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 450A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-62MM-1
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：450 A
- Power - Max：-
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

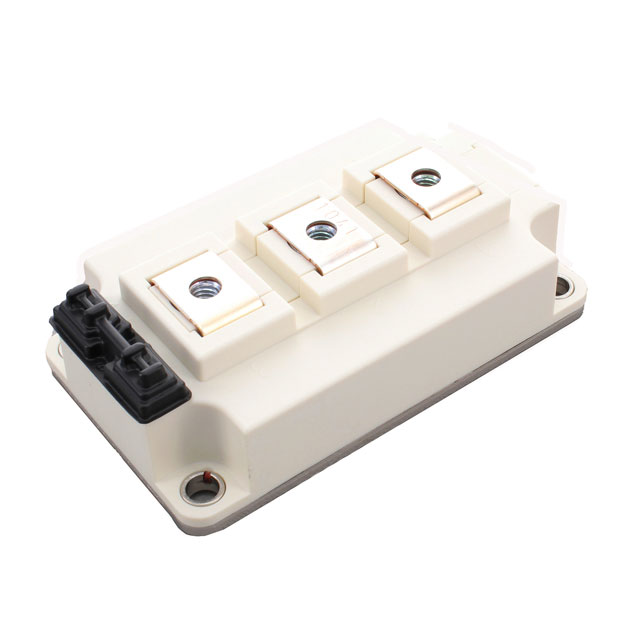

The FD450R12KE4PHOSA1 is a single-chip IGBT module from the Chopper IGBT4 - E4 series, utilizing Trench/Fieldstop technology. It features an integrated emitter-controlled HE diode and pre-applied thermal interface material within a 62 mm C-Series housing. The collector-emitter voltage (VCES) is rated at 1200 V, with a continuous DC collector current (ICDC) of 450 A at TH = 70°C. The repetitive peak collector current (ICRM) reaches 900 A for 1 ms pulses. At Tvj = 25°C, the collector-emitter saturation voltage (VCEsat) is typically 1.75 V. The module operates within a junction temperature range of -40°C to +150°C.
Feature Summary
- Trench/Fieldstop IGBT4 technology combined with an emitter-controlled HE diode for optimized switching performance.
- Pre-applied thermal interface material included in the package to simplify assembly and ensure consistent thermal contact.
- Isolated base plate design providing high creepage and clearance distances with a CTI greater than 400.
Applications
- 3-level applications
- Chopper applications
- Motor drives
Procurement Notes
Verify the specific ordering suffix PHOSA1 against official Infineon documentation to confirm exact packaging and marking details. Confirm that the pre-applied thermal interface material requirements are met during storage and transport according to application notes. Ensure mounting torque specifications for M6 screws align with valid application guidelines before installation.
Selection Notes
Select this component for designs requiring robust short-circuit withstand capability and low switching losses. The positive temperature coefficient of VCEsat facilitates parallel operation without complex current balancing. Verify that the 62 mm C-Series footprint matches the mechanical constraints of the target heatsink and enclosure layout.
Part Context
This module belongs to the Infineon Chopper IGBT4 - E4 product family. It utilizes silicon technology within a standard 62 mm housing. The part number alias includes FD450R12KE4P. It is designed for industrial power electronics applications requiring high reliability and efficient thermal management.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided datasheet or source material. Consult official Infineon cross-reference documentation for potential replacements.
