FD93

Overview

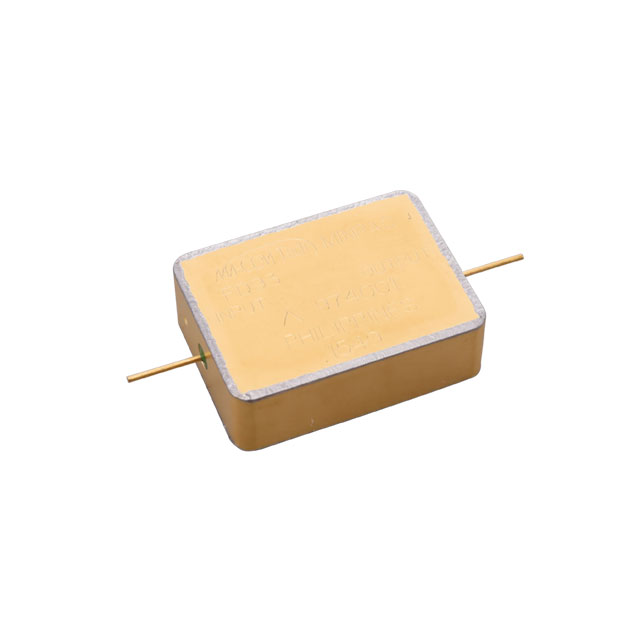

The FD93 is a passive bridge diode frequency doubler manufactured by MACOM Technology Solutions. It is designed for high-volume commercial and test equipment applications. The component utilizes a specific diode bridge architecture to achieve frequency multiplication functions within RF signal chains.

Feature Summary

• Passive bridge diode topology
• Frequency doubling capability
• Suitable for high-volume commercial environments

Applications

• Commercial test equipment
• High-volume commercial RF systems
• Signal conditioning circuits requiring frequency multiplication

Procurement Notes

Verify current availability status as the product may be subject to supply constraints or discontinuation notices. Confirm that the specific package type and datasheet revision match the design requirements before procurement. Cross-reference with authorized distributors to ensure authenticity and traceability of the component.

Selection Notes

Select this component when a passive frequency doubling solution is required for commercial-grade applications. Ensure the input signal characteristics align with the diode bridge specifications. Consider thermal management and impedance matching networks appropriate for the target operating frequency range during circuit design.

Part Context

The FD93 belongs to the family of RF miscellaneous ICs and modules produced by MACOM Technology Solutions. It serves as a specialized passive component for frequency conversion tasks, distinct from active amplifiers or general-purpose transistors in the manufacturer's portfolio.

Replacement Considerations

Public confirmed substitute part numbers include FD93C and FD93H. Verify electrical compatibility and pinout alignment when considering these alternatives for existing designs.
