FDC2710

Overview

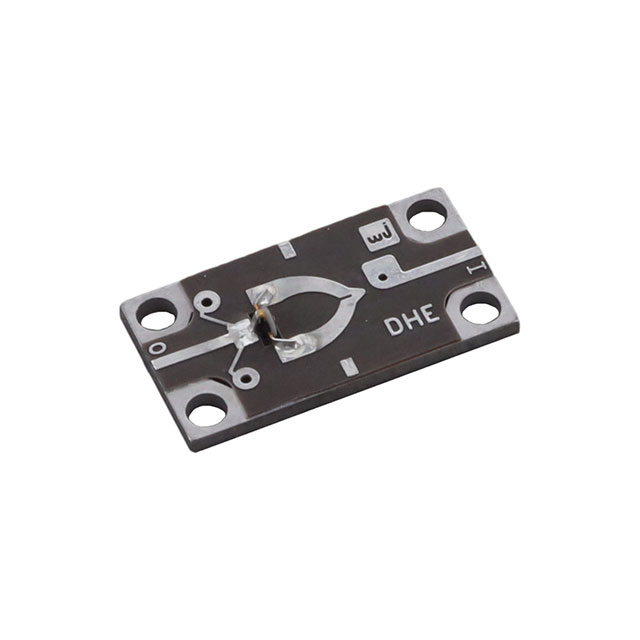

The FDC2710 is a passive bridge diode frequency doubler designed for high-volume commercial and test equipment applications. It operates within a frequency range of 3.5 GHz to 8 GHz, providing a bandwidth of 4.5 GHz with a 50 Ohm impedance. The device utilizes surface mount technology (SMD/SMT) for installation. Key performance characteristics include a typical conversion gain ranging from 0 to +3 dB and improved input/output isolation, which reduces the requirement for additional amplification and filtering stages in signal processing chains.

Feature Summary

• Passive bridge diode architecture optimized for frequency doubling
• High conversion gain typically between 0 and +3 dB
• Enhanced input and output isolation capabilities
• Surface mount design suitable for automated assembly

Applications

• Commercial communication systems
• Test and measurement equipment
• Signal generation circuits requiring frequency multiplication

Procurement Notes

Verify that the specific application environment supports the 3.5 GHz to 8 GHz operational range. Confirm that the passive nature of the component aligns with system power budget requirements. Ensure that the SMD package dimensions are compatible with the target PCB layout. Review datasheet specifications for thermal management needs during continuous operation.

Selection Notes

Select this component when a passive frequency doubling solution is required within the specified microwave frequency band. The choice is driven by the need for moderate conversion gain without active biasing complexity. Consider the isolation benefits for reducing harmonic interference in sensitive receiver or transmitter paths. Evaluate compatibility with existing 50 Ohm system impedance standards.

Part Context

MACOM Technology Solutions specializes in high-performance analog semiconductor solutions for RF, microwave, and millimeter-wave applications. The FDC2710 represents their capability in providing passive components for signal conditioning and frequency manipulation. This product line supports industries such as telecommunications, industrial, and defense where reliable frequency synthesis is critical.

FAQ

What is the typical conversion gain of the FDC2710?

The FDC2710 offers a typical conversion gain ranging from 0 to +3 dB.

Is the FDC2710 an active or passive device?

The FDC2710 is a passive bridge diode frequency doubler and does not require external DC bias.
