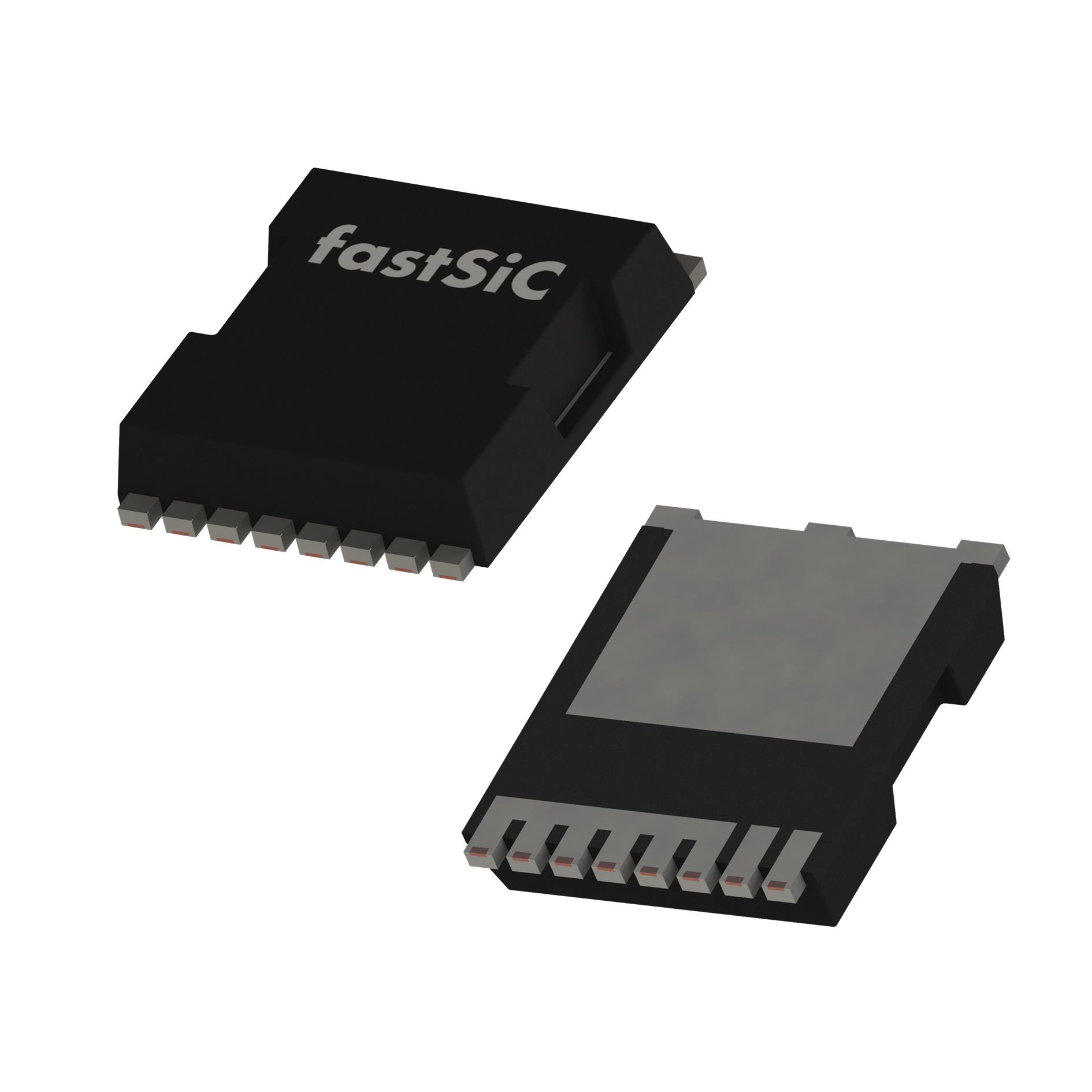

FF07025FA

$30.18

Description：SICFET N-CH 750V 81A TOLL
Series：Falcon
Mfr：fastSiC
Package：Tape & Reel (TR)

SKU:7008264a49bd Category: Single FETs, MOSFETs Brand: fastSiC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FF07025FA is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists fastSiC. Its product description is SICFET N-CH 750V 81A TOLL. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for FF07025FA

Description：SICFET N-CH 750V 81A TOLL
Series：Falcon
Mfr：fastSiC
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)：750 V
Current - Continuous Drain (Id) @ 25°C：81A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：18V
Rds On (Max) @ Id, Vgs：34mOhm @ 30A, 18V
Vgs(th) (Max) @ Id：2.5V @ 60mA
Gate Charge (Qg) (Max) @ Vgs：174 nC @ 15 V
Vgs (Max)：+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds：4604 pF @ 500 V
FET Feature：-
Power Dissipation (Max)：333W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：TOLL
Package / Case：8-PowerSFN

Single FETs, MOSFETs datasheet and documents for FF07025FA

FF07025FA

Single FETs, MOSFETs Overview

The FF07025FA is a Silicon Carbide MOSFET from the Falcon Series by Fast SiC Semiconductor Inc. It features a 750V drain-source voltage and a typical on-state resistance of 25mΩ at 25°C. The device supports a continuous drain current of 81A and a pulse current of 247A, with a power dissipation rating of 333W. It operates within a junction temperature range of -55°C to 175°C and utilizes a TOLL package.

Single FETs, MOSFETs Feature Summary

Optimized on-state resistance combined with rapid switching behavior for high efficiency.
Clean Kelvin-source pin-out design compatible with standard gate drivers.
High avalanche endurance capability suitable for demanding power applications.
RoHS compliant and halogen-free construction.

Single FETs, MOSFETs Applications

Switching mode power supplies
Power factor correction and DC/DC converters
Electric vehicle charging stations
Uninterruptible power systems
Renewable energy inverters

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revision status prior to integration. Ensure thermal management aligns with specified junction limits. Validate package compatibility during PCB layout. Review application notes for recommended operating conditions.

Single FETs, MOSFETs Selection Notes

Evaluate thermal impedance requirements against system cooling capabilities. Consider gate drive voltage compatibility with the 15-18V recommendation. Assess switching frequency constraints based on total gate charge characteristics. Verify safe operating area margins under peak load conditions.

Single FETs, MOSFETs Part Context

This component belongs to the Falcon Series of Silicon Carbide MOSFETs manufactured by Fast SiC Semiconductor Inc. The series targets high-power density applications requiring superior thermal performance compared to conventional silicon devices.

Single FETs, MOSFETs Replacement Considerations

Datasheet references comparable products available via manufacturer contact. Verify pinout alignment and thermal interface specifications before substitution.
