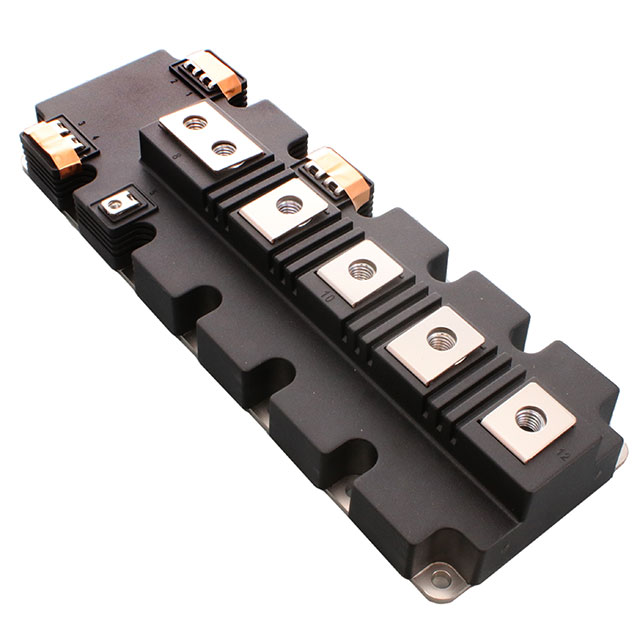

FF1400R17IP4BOSA1

$636.79

Description：IGBT MODULE 1700V 1400A
Series：PrimePACK™3

SKU:50f610165776 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1700V 1400A
Series：PrimePACK™3
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：2 Independent
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 1400A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1700 V
Current - Collector (Ic) (Max)：1400 A
Power - Max：955000 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：110 nF @ 25 V

Download product information

FF1400R17IP4BOSA1

Overview

The FF1400R17IP4BOSA1 is a PrimePACK™3 IGBT module featuring Trench/Fieldstop IGBT4 technology and an Emitter Controlled Diode. It provides a collector-emitter voltage (VCES) of 1700 V and a continuous DC collector current (IC nom) of 1400 A at TC = 100°C. The repetitive peak collector current reaches 2800 A for 1 ms pulses. Typical saturation voltage (VCEsat) is 1.75 V at Tvj = 25°C, rising to 2.80 V at 150°C. Gate-emitter peak voltage is ±20 V. The module includes an integrated NTC thermistor with a rated resistance of 5.0 kΩ at 25°C. Maximum junction temperature under switching conditions is 150°C.

Feature Summary

High short-circuit capability and surge current robustness
Positive temperature coefficient for collector-emitter saturation voltage
Integrated NTC temperature sensor for thermal monitoring
High insulation strength with 4 kV AC isolation

Applications

3-level inverter applications
Industrial motor drives
Wind turbine generators

Procurement Notes

Verify the component authenticity by checking the UL approval mark (E83335) and RoHS compliance status on the physical module label. Confirm the production datecode and serial number match the shipping documentation. Ensure the ordering suffix BOSA1 corresponds to the specific material and manufacturing requirements defined by Infineon Technologies for this part number.

Selection Notes

Select this module for high-power applications requiring 1700 V blocking capability and 1400 A continuous current handling. Consider the thermal resistance values (RthJC) and the maximum operating junction temperature of 150°C when designing the cooling system. Verify that the gate drive circuitry supports the specified ±20 V peak voltage and internal gate resistor characteristics.

Part Context

This component belongs to the Infineon PrimePACK™3 series, utilizing Trench/Fieldstop IGBT4 technology. It is designed as a half-bridge module containing one IGBT switch and one anti-parallel diode. The package features a copper baseplate and high creepage/clearance distances suitable for industrial environments.
