FF1500R17IP5RBPSA1

$654.59

Description：PP IHM I XHP 1 7KV AG-PRIME3-5
Series：PrimePACK™3

SKU:66bbc2f3f796 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PP IHM I XHP 1 7KV AG-PRIME3-5
Series：PrimePACK™3
Mfr：Infineon Technologies
Package：Bulk,Tray
IGBT Type：Trench Field Stop
Configuration：2 Independent
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 1.5kA
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1700 V
Current - Collector (Ic) (Max)：1500 A
Power - Max：-
Current - Collector Cutoff (Max)：10 mA
Input Capacitance (Cies) @ Vce：88 nF @ 25 V

Download product information

FF1500R17IP5RBPSA1

Overview

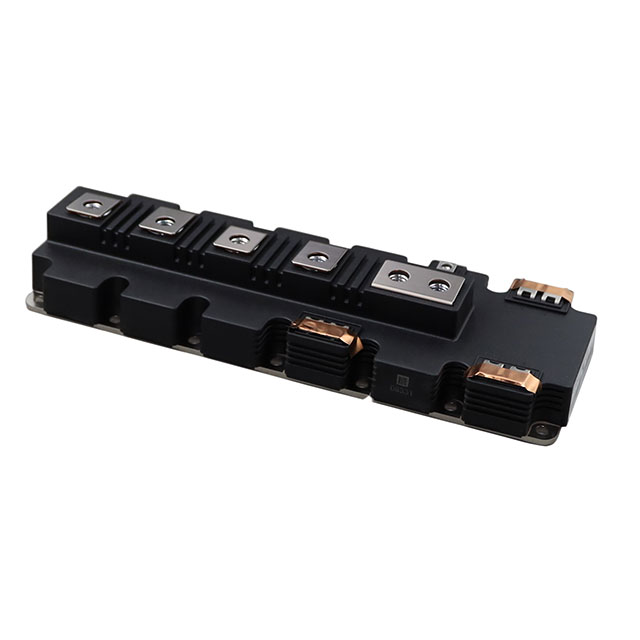

The FF1500R17IP5RBPSA1 is a dual IGBT module from Infineon Technologies, utilizing Trenchstop IGBT5 technology and an Emitter Controlled 5 diode. It features a PrimePACK™3 housing with an integrated NTC thermistor. The collector-emitter voltage (VCES) is rated at 1700 V, with a continuous DC collector current (ICDC) of 1500 A at TC = 90°C and Tvj max = 175°C. The repetitive peak collector current (ICRM) reaches 3000 A for 1 ms pulses. The collector-emitter saturation voltage (VCEsat) is typically 1.75 V at Tvj = 25°C. Operating junction temperature ranges from -40°C to +175°C.

Feature Summary

High power density design with extended operating temperature up to 175°C
Low switching losses and low VCEsat characteristics
Package with CTI > 400 and high creepage/clearance distances
Integrated NTC thermistor for reliable thermal monitoring

Applications

High power converters
Motor drives
Traction drives
Wind turbines

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm exact configuration details. Ensure compatibility with existing system requirements before procurement. Cross-reference datasheet version numbers to guarantee accurate technical specifications are applied during integration.

Selection Notes

Evaluate thermal resistance values and mounting torque specifications for proper heat dissipation. Confirm gate drive parameters align with internal gate resistor and charge requirements. Assess stray inductance limits within the circuit layout to ensure safe operation under high current conditions.

Part Context

This component belongs to the PrimePACK™3 series featuring Trenchstop IGBT5 technology. It represents a high-performance solution designed for demanding industrial applications requiring robust electrical isolation and efficient thermal management capabilities.
