Product Detailed Parameters
- Description：FF150R12W2T7EB11BPSA1
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

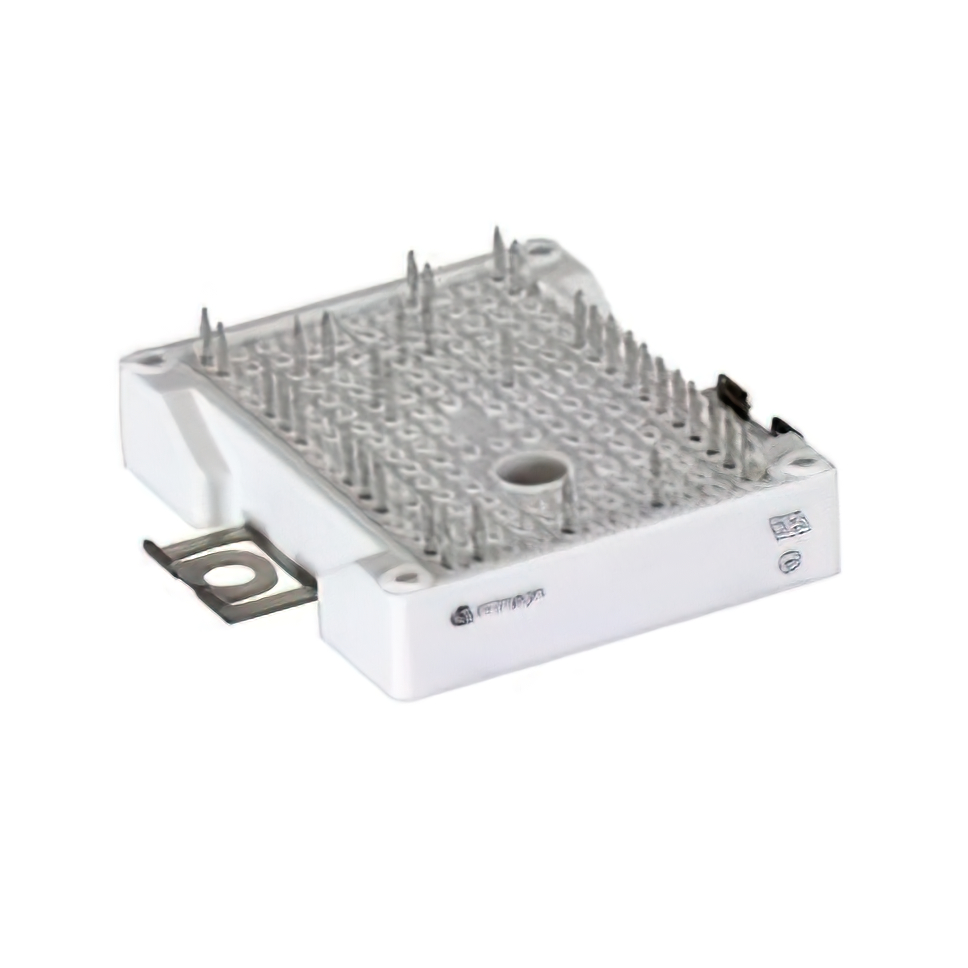

The FF150R12W2T7EB11BPSA1 is an EasyDUAL IGBT module featuring TRENCHSTOP™ IGBT7 technology and emitter-controlled diodes. It provides a collector-emitter voltage of 1200 V, a nominal current of 150 A, and a repetitive peak current of 300 A. The continuous DC collector current reaches 135 A at 65°C heatsink temperature. Saturation voltage is typically 1.55 V at 25°C. Operating junction temperature ranges from -40°C to 175°C. The module utilizes PressFIT contact technology and includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diode for optimized switching performance
- Features PressFIT contact technology for reliable mechanical connection
- Includes an integrated NTC temperature sensor for thermal monitoring
- Utilizes Al2O3 substrate to provide low thermal resistance and high power density
Applications
- Motor drives
- Air conditioning systems
- Auxiliary inverters
- Servo drives
- UPS systems
Procurement Notes
Verify the component against official Infineon datasheet IFX-ABJ608-002 to confirm technical specifications. Ensure that the ordering suffix matches the required configuration. Confirm compliance with industrial application standards as specified in the product validation section. Validate insulation coordination requirements before integration into the final design.
Selection Notes
Select this module for applications requiring high power density and efficient thermal management. Consider the 175°C operating capability for overload conditions. Verify gate driver compatibility using the manufacturer's GDFinder tool. Evaluate the stray inductance and internal gate resistor values during circuit layout planning to ensure stable switching behavior.
Part Context
This component belongs to the Infineon EasyDUAL series, designed for compact power electronics. It combines IGBT7 technology with emitter-controlled diodes to reduce switching losses. The module is intended for industrial applications and meets relevant IEC qualification tests. It serves as a core switching element in various power conversion topologies.
Replacement Considerations
Consult the official datasheet for direct substitutes within the EasyDUAL family. Verify pinout compatibility and electrical ratings before replacing existing components. Cross-reference thermal resistance values to ensure adequate heat dissipation in the target application.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
How is the module mechanically connected?
The module uses PressFIT contact technology for mounting.
What is the typical saturation voltage at 25°C?
The typical collector-emitter saturation voltage is 1.55 V at 25°C.
