Product Detailed Parameters
- Description：IGBT MODULE
- Series：PrimePACK™3+ B
- Mfr：Infineon Technologies
- Package：Bulk
- IGBT Type：-
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：2.26V @ 15V, 1.8kA
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：PrimePACK™ 3+
- Voltage - Collector Emitter Breakdown (Max)：2300 V
- Current - Collector (Ic) (Max)：1800 A
- Power - Max：-
- Current - Collector Cutoff (Max)：30 mA
- Input Capacitance (Cies) @ Vce：420 nF @ 25 V
Download product information
Overview

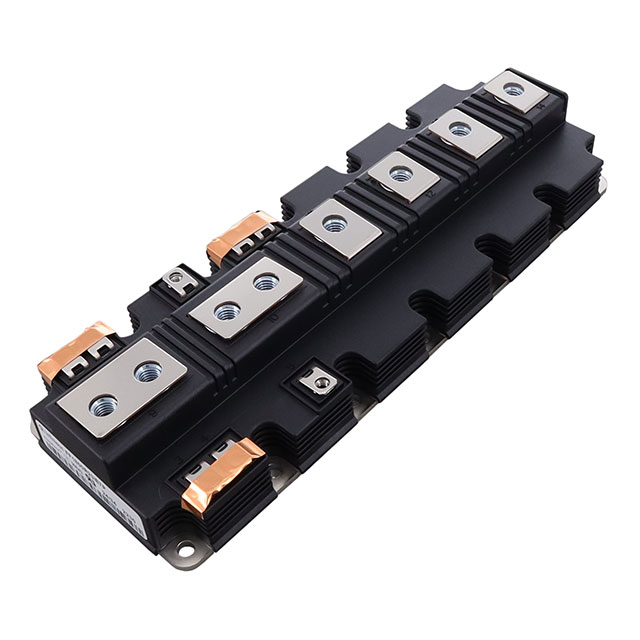

The FF1800R23IE7PBPSA1 is a PrimePACK™3+ B-series IGBT module featuring TRENCHSTOP™ IGBT7 technology and an emitter-controlled diode. It provides a collector-emitter voltage of 2300 V and a nominal current of 1800 A, with a repetitive peak current capability of 3600 A. The module includes an integrated NTC thermistor for thermal monitoring and comes with pre-applied thermal interface material. Designed for industrial applications, it supports operation up to 150°C junction temperature, with overload capability extending to 175°C.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 technology with low saturation voltage and switching losses
- Includes pre-applied thermal interface material for simplified assembly
- Features high creepage and clearance distances within a package exceeding CTI 400
- Supports overload operation up to 175°C beyond the standard 150°C limit
Applications
- Three-level inverter topologies
- Solar power generation systems
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm the inclusion of pre-applied thermal interface material and exact packaging configuration. Ensure compliance with export regulations if applicable. Confirm that the component meets the required industrial qualification standards before finalizing procurement orders.
Selection Notes
Select this module for high-voltage applications requiring robust insulation coordination and high current density. Verify that the system design accommodates the specified stray inductance and mounting torque requirements. Ensure the cooling solution maintains the baseplate temperature within limits defined by the thermal resistance characteristics provided in the datasheet.
Part Context
This component belongs to Infineon's PrimePACK™3+ B-series lineup, designed for high-power industrial converters. It utilizes advanced trench gate field-stop technology to optimize efficiency and power density. The series is specifically engineered to meet the rigorous demands of renewable energy and traction applications through enhanced reliability and thermal performance.
Replacement Considerations
Direct substitutes are not explicitly listed in the public datasheet. Evaluate alternative modules based on matching voltage ratings (2300 V), current capacity (1800 A), and compatible mechanical dimensions.
