FF225R17ME7B11BPSA1

Overview

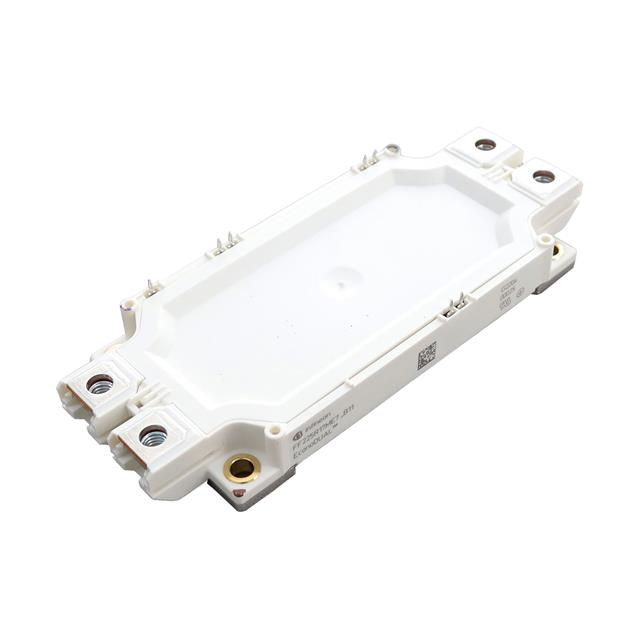

The FF225R17ME7B11BPSA1 is a dual IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technology. It features a collector-emitter voltage (VCES) of 1700 V and a nominal continuous DC collector current (ICDC) of 225 A at a case temperature of 100 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical saturation voltage (VCE,sat) of 1.70 V at 25 °C and a forward voltage (VF) of 2.35 V for the diode. Mechanical specifications indicate a weight of 345 g and isolation test voltages of 3.4 kV RMS.

Feature Summary

• Utilizes micro-pattern trench technology to achieve high controllability and reduced switching losses.
• Features PressFIT contact technology for standard housing integration and high power density.
• Includes an integrated NTC thermistor for reliable thermal monitoring within the module.
• Provides positive temperature coefficient for VCE,sat to support safe parallel operation.

Applications

• High-power converters
• Medium-voltage converters
• Motor drives
• Wind turbines

Procurement Notes

Verify component authenticity by cross-referencing the Data Matrix barcode on the module label with official Infineon records. Ensure that the ordering suffix matches the specific technical configuration required for the application. Confirm compliance with industrial qualification standards such as IEC 60747 and IEC 60068 prior to deployment in critical systems.

Selection Notes

Select this module for applications requiring high voltage blocking capability and robust overload performance up to 175 °C junction temperature. Consider the specific thermal resistance values and stray inductance when designing the gate drive circuit and heatsink interface. Ensure compatibility with recommended isolated gate driver ICs that meet reinforced isolation requirements for optimal switching performance.

Part Context

This component belongs to the EconoDUAL™3 family, which is designed for industrial applications. It represents the seventh generation of TRENCHSTOP™ IGBT technology, offering improved efficiency compared to previous generations. The module is specifically engineered for variable speed drives and medium-voltage power conversion systems where high reliability and compact packaging are essential.

Replacement Considerations

Public confirmed substitute part numbers: None identified in verified documentation.

FAQ

What is the maximum operating junction temperature for this module?

The module supports an operating junction temperature range from -40 °C to 175 °C. Operation above 150 °C is permitted only under overload conditions as specified in application note AN 2018-14.

How is the internal isolation achieved in the EconoDUAL™3 package?

Internal isolation is provided by an Al2O3 substrate, classified as basic insulation according to IEC 61140. The module baseplate is made of copper, and the creepage distance between terminals and the baseplate is nominally greater than 15 mm.

What is the function of the integrated NTC thermistor?

The integrated NTC thermistor allows for real-time monitoring of the module's temperature. It has a rated resistance of 5 kΩ at 25 °C and a B-value of 3375 K (B25/50), enabling accurate thermal management and protection against overheating.
