Product Detailed Parameters
- Description：MEDIUM POWER ECONO
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 300A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD-3
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：390 A
- Power - Max：1100 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：18.5 nF @ 25 V
Download product information
Overview

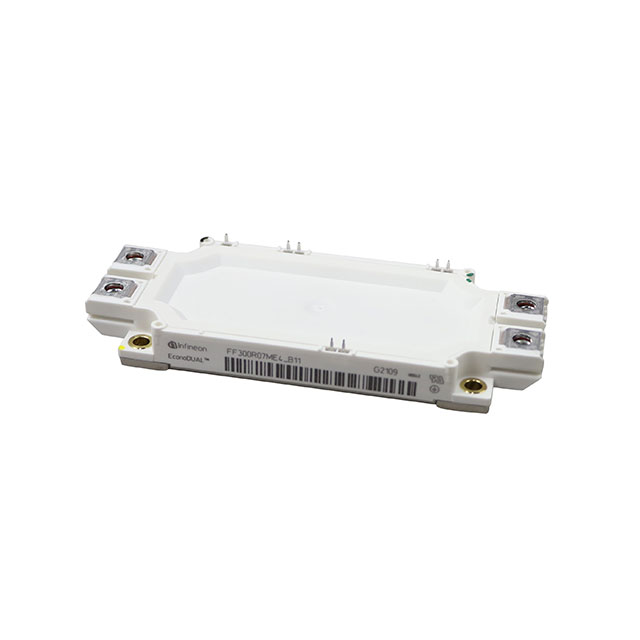

The FF300R07ME4B11BPSA1 is a half-bridge IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology. It features a 650 V collector-emitter voltage rating and a continuous DC collector current of 300 A at a case temperature of 80 °C. The module incorporates an emitter-controlled diode with a forward current capability matching the IGBT. Key electrical parameters include a typical collector-emitter saturation voltage of 1.55 V and a forward voltage of 1.55 V at 25 °C. It supports a maximum junction temperature of 150 °C under switching conditions and includes an integrated NTC thermistor for thermal monitoring.
Feature Summary
- Features PressFIT contact technology for rugged self-acting assembly and high mechanical robustness.
- Includes an isolated copper base plate and integrated NTC temperature sensor for precise thermal management.
- Demonstrates high short-circuit capability and increased blocking voltage stability up to 650 V.
Applications
- Commercial agriculture vehicles
- Motor drives
- Solar applications
- UPS systems
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm component specifications. Ensure that the procurement channel provides valid traceability and authenticity certificates. Confirm compliance with industrial application standards such as IEC 60747 and IEC 60068 before finalizing acquisition.
Selection Notes
Select this module for designs requiring a 650 V rating with 300 A continuous current capacity. Consider the PressFIT termination method if board space is limited or vibration resistance is critical. Evaluate the thermal resistance values and operating temperature range to ensure compatibility with the intended heat sink and cooling system requirements.
Part Context
This component belongs to the EconoDUAL™3 product family, designed for high power density and leading-edge power cycling capability. It utilizes TRENCHSTOP™ IGBT4 technology to optimize performance in industrial and renewable energy applications. The standard housing facilitates integration into various inverter topologies.
Replacement Considerations
Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains identical voltage ratings, current capabilities, and terminal configurations to guarantee functional equivalence without redesigning the host circuitry.
FAQ
What is the maximum short-circuit current capability?
The module can withstand a short-circuit current of 1400 A for a duration of up to 10 µs at a junction temperature of 150 °C.
How does the module handle thermal monitoring?
An integrated NTC thermistor is included, featuring a rated resistance of 5 kΩ at 25 °C, allowing for accurate real-time temperature tracking.
What insulation isolation voltage is provided?
The module offers an isolation test voltage of 2.5 kV RMS between terminals and the base plate, ensuring basic insulation compliance.
