Product Detailed Parameters
- Description：IGBT MOD 1200V 460A 1600W
- Series：C
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 300A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：460 A
- Power - Max：1600 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：19 nF @ 25 V
Download product information
Overview

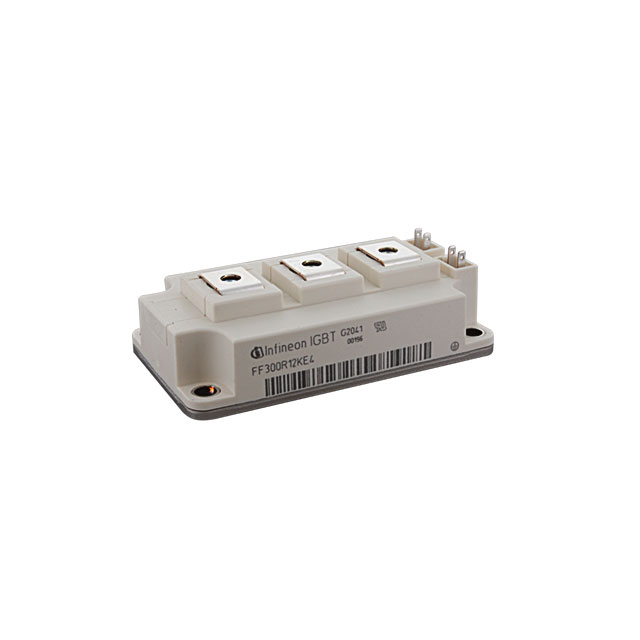

The FF300R12KE4HOSA1 is a 62mm C-series IGBT module featuring Trench/Fieldstop IGBT4 technology and an optimized Emitter Controlled Diode. It has a collector-emitter voltage of 1200 V, a continuous DC collector current of 300 A at 100°C case temperature (rising to 460 A at 25°C), and a repetitive peak collector current of 600 A. The total power dissipation is 1600 W at 25°C. Key electrical parameters include a collector-emitter saturation voltage of 1.75 V (typical) at 25°C, a gate threshold voltage of 5.8 V (typical), and an internal gate resistance of 2.5 Ω. Thermal resistance from junction to case is 0.093 K/W for the IGBT and 0.15 K/W for the diode.
Feature Summary
- Incorporates Trench/Fieldstop IGBT4 technology for efficient switching performance.
- Features an optimized Emitter Controlled Diode with low reverse recovery charge.
- Designed for high thermal stability with a maximum operating junction temperature of 150°C.
Applications
- Industrial inverters
- Uninterruptible Power Supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific ordering suffix HOSA1 against official Infineon documentation to confirm RoHS compliance status and manufacturing origin details. Ensure that the procurement channel provides valid traceability certificates matching the component's production batch requirements.
Selection Notes
Select this module for applications requiring robust short-circuit withstand capability up to 1200 A for 10 µs. Consider the 20 nH stray inductance for circuit layout optimization. Verify that the mounting torque adheres to the specified 3.0 - 6.0 Nm range for M6 screws to ensure proper thermal contact and mechanical integrity.
Part Context
This component belongs to the Infineon 62mm C-series family, utilizing the IGBT4 generation. It shares the standard physical footprint and terminal configuration with other modules in this series, facilitating direct mechanical integration into existing industrial power conversion platforms designed for 62mm form factors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires consulting official Infineon replacement guides or distributor compatibility matrices.
