Product Detailed Parameters
- Description：IGBT MODULE MED PWR ECONOD-3
- Series：EconoDUAL™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

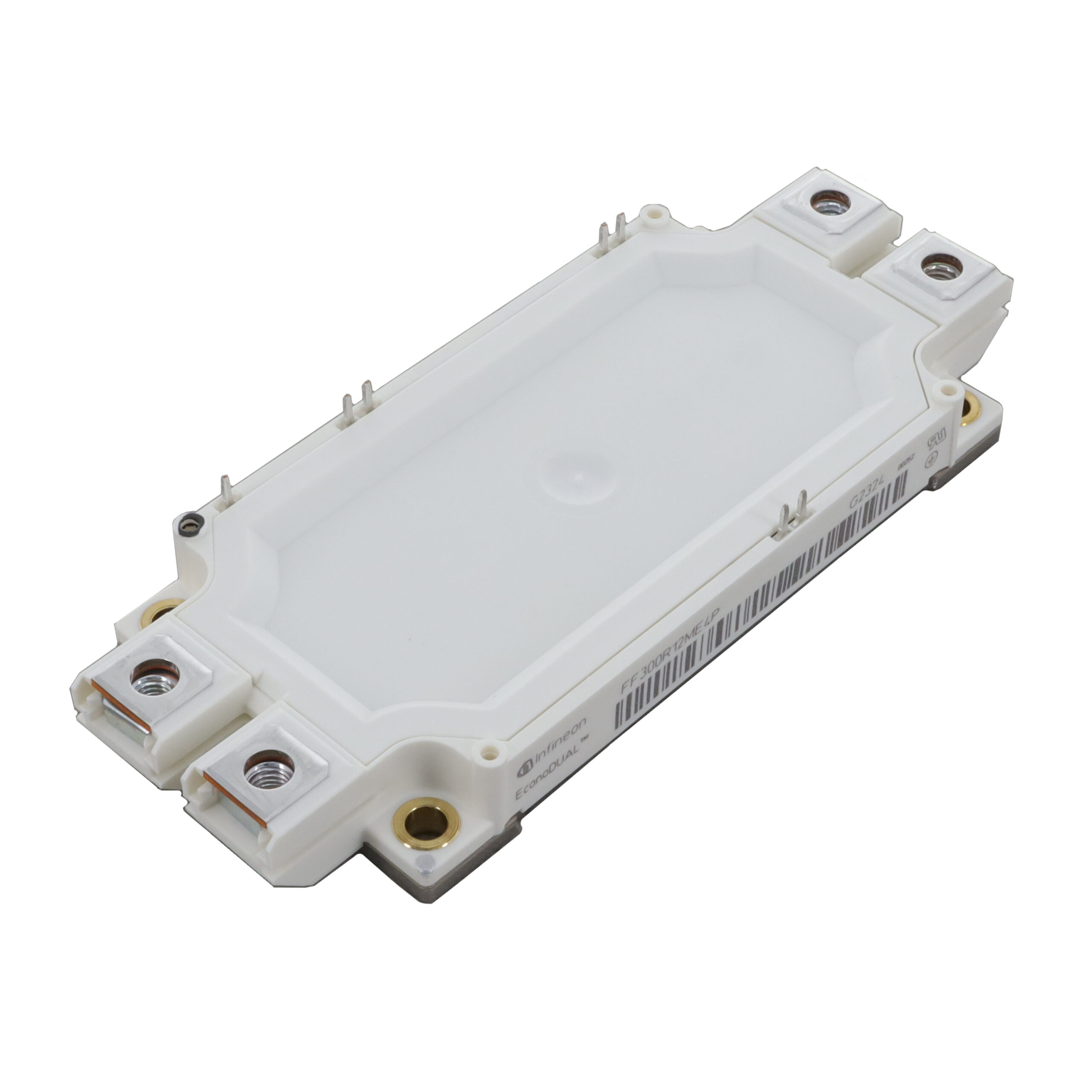

The FF300R12ME4PBOSA1 is a half-bridge IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology and an Emitter Controlled HE diode. It features a standard EconoDUAL™3 housing with an integrated NTC thermistor. Key electrical ratings include a collector-emitter voltage (VCES) of 1200 V, a nominal continuous DC collector current (IC nom) of 300 A at TC=100°C, and a repetitive peak collector current (ICRM) of 600 A. The module supports a maximum junction temperature under switching conditions of 150°C and has a total power dissipation of 1600 W at TC=25°C.
Feature Summary
- Incorporates Trench/Fieldstop IGBT4 technology for low saturation voltage and optimized switching performance.
- Features an Emitter Controlled HE diode to minimize reverse recovery losses.
- Includes an integrated NTC thermistor for precise thermal monitoring.
Applications
- Motor Drives
- Servo Drives
- UPS Systems
- Wind Turbines
Procurement Notes
Verify the specific ordering suffix PBOSA1 against official documentation to confirm material content and compliance details. Ensure that the component matches the required technical specifications for the intended application before procurement.
Selection Notes
Select this module for applications requiring high reliability and efficient thermal management. Consider the 150°C operating temperature limit and the need for appropriate heatsinking to maintain junction temperatures within safe limits during operation.
Part Context
This component belongs to the EconoDUAL™3 series, designed for industrial power electronics. It integrates advanced semiconductor technologies to provide robust performance in demanding environments, suitable for various power conversion systems.
Replacement Considerations
Consult official replacement lists for compatible modules. Verify pin compatibility and thermal characteristics when substituting with other models in the same series or from different manufacturers.
FAQ
What is the maximum junction temperature for switching operations?
The maximum junction temperature under switching conditions is 150°C.
Does the module include thermal protection components?
Yes, it includes an integrated NTC thermistor for thermal monitoring.
What is the repetitive peak collector current rating?
The repetitive peak collector current (ICRM) is rated at 600 A for a pulse duration of 1 ms.
