FF300R17ME4B11BPSA1

Overview

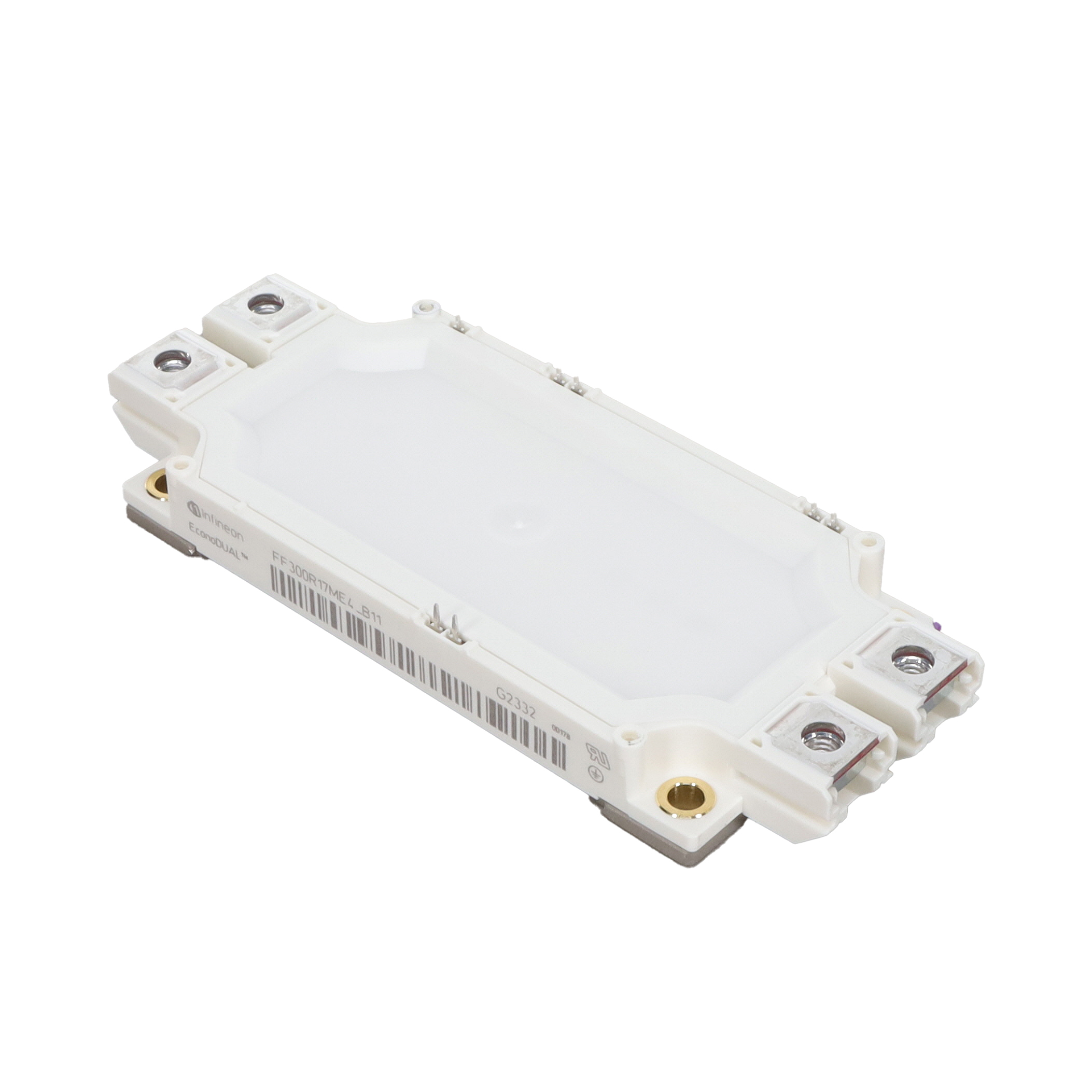

The FF300R17ME4B11BPSA1 is a half-bridge IGBT module from the EconoDUAL™3 series, utilizing Trench/Fieldstop IGBT4 technology. It features an isolated copper base plate and PressFIT terminals with an integrated NTC thermistor. Key electrical ratings include a collector-emitter voltage of 1700 V, a continuous DC collector current of 300 A at 100 °C case temperature, and a repetitive peak current of 600 A. The typical saturation voltage is 1.95 V at 25 °C junction temperature. Operating junction temperatures range from -40 °C to 150 °C.

Feature Summary

• High power density design with an isolated base plate for enhanced thermal management
• Emitter controlled diode providing low forward voltage characteristics
• Positive temperature coefficient of saturation voltage for reliable parallel operation
• Integrated NTC thermistor for precise internal temperature monitoring

Applications

• Motor drives
• Servo drives
• UPS systems
• Wind turbines

Procurement Notes

Verify component authenticity by cross-referencing the Data Matrix barcode on the module label against Infineon's official tracking systems. Confirm that the specific ordering suffix matches the required terminal connection type, as variations exist between solder pin and PressFIT configurations within the same family.

Selection Notes

Select this module for applications requiring high voltage blocking capability and robust short-circuit withstand performance. Ensure the gate driver circuitry supports the specified ±15 V operating levels and accounts for the internal gate resistance. Verify that the mechanical mounting torque adheres strictly to the application notes to maintain optimal thermal interface contact.

Part Context

This component belongs to the Infineon EconoDUAL™3 product line, which standardizes housing dimensions for modular power electronics. It represents the fourth generation of Trench/Fieldstop technology, offering improved switching losses compared to previous iterations while maintaining compatibility with established industrial cooling solutions.

Replacement Considerations

Direct replacements within the same package require matching the 1700 V rating and 300 A current capacity. Consider the FF300R17ME4P_B11 variant if PressFIT terminals are mandatory, or the FF300R17ME4 model if solder pins are preferred. Always verify thermal resistance values when substituting.
