FF300R17ME4BOSA1

Overview

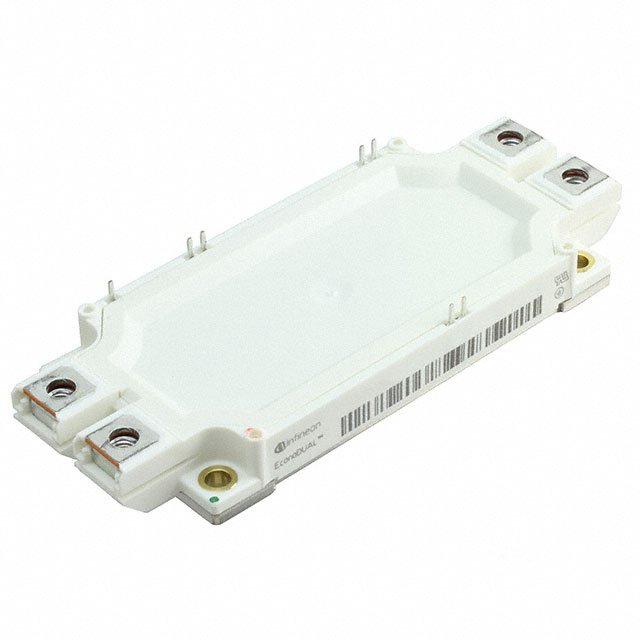

The FF300R17ME4BOSA1 is a Trench/Fieldstop IGBT4 module with an emitter-controlled diode and NTC thermistor. It features a collector-emitter voltage of 1700 V, a nominal continuous DC collector current of 300 A at 25°C, and a repetitive peak collector current of 600 A. The saturation voltage is typically 1.95 V at 25°C. Operating junction temperature ranges from -40°C to 150°C. The module utilizes the EconoDUAL™3 housing with an isolated copper base plate.

Feature Summary

• Incorporates Trench/Fieldstop IGBT4 technology for optimized switching performance
• Features an integrated NTC thermistor for precise thermal monitoring
• Provides high power density within a standard insulated EconoDUAL™3 housing

Applications

• Motor drives
• Servo drives
• UPS systems
• Wind turbines

Procurement Notes

Verify the specific BOSA1 suffix against official Infineon documentation to confirm internal configuration details. Ensure that the ordering information matches the exact datasheet revision required for your design specifications. Cross-reference the material number on the module label with procurement records to prevent substitution errors during assembly.

Selection Notes

Select this component for industrial applications requiring robust insulation coordination and high short-circuit withstand capability. Confirm that the gate driver selection aligns with the recommended Infineon drivers listed in the datasheet. Evaluate the thermal resistance values to ensure adequate heat sinking for the intended operating conditions.

Part Context

This part belongs to the EconoDUAL™3 series utilizing Trenchstop IGBT4 technology. It serves as a half-bridge inverter module designed for demanding power conversion tasks. The product line emphasizes reliability through rigorous qualification testing aligned with international standards for industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
