FF450R07ME4B11BPSA1

Overview

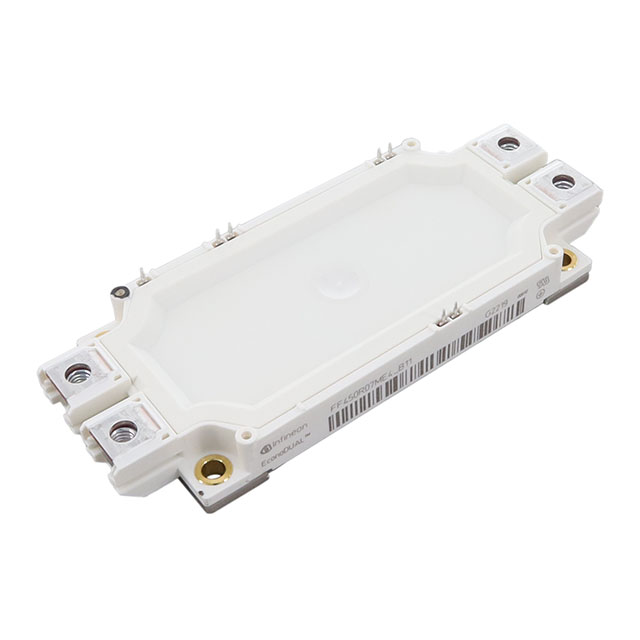

The FF450R07ME4B11BPSA1 is a half-bridge IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology. It features a 650 V collector-emitter voltage rating and a continuous DC collector current of 450 A at 25°C, with a repetitive peak current capability of 900 A. The module incorporates an integrated NTC thermistor for thermal monitoring and utilizes PressFIT contact technology for assembly. Operating junction temperatures range from -40°C to +150°C under switching conditions. Key electrical parameters include a typical saturation voltage of 1.55 V and a forward voltage of 1.55 V at 25°C.

Feature Summary

• High short-circuit and surge current capabilities
• Integrated NTC temperature sensor for reliable thermal management
• PressFIT contact technology enabling rugged self-acting assembly
• Isolated copper base plate design

Applications

• Commercial agriculture vehicles
• Motor drives
• Solar applications
• UPS systems

Procurement Notes

Verify the exact ordering suffix against official Infineon documentation to ensure correct package type and terminal configuration. Confirm that the component meets specific industrial qualification standards required by the target application environment before finalizing procurement orders.

Selection Notes

Select this module for designs requiring high power density and robust mechanical mounting solutions. Ensure gate driver compatibility with the specified internal gate resistance and threshold voltages. Verify that the system's DC-link voltage remains within the 650 V blocking capability limits during operation.

Part Context

This component belongs to the EconoDUAL™3 series, designed for medium to high-power industrial applications. It represents the fourth generation of Trench/Fieldstop IGBT technology, offering improved switching characteristics compared to previous generations while maintaining standard housing dimensions for easy integration into existing thermal management systems.

Replacement Considerations

Consult official Infineon cross-reference documents for verified substitute part numbers. Do not assume functional equivalence with other modules based solely on similar current or voltage ratings without verifying pinout and thermal resistance specifications.
